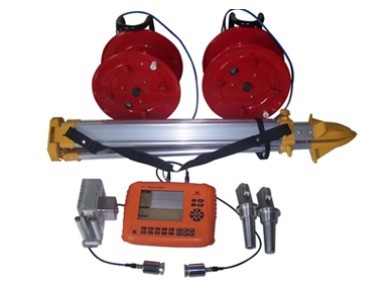

Ultrasonic Cross-hole Automatic Foundation Pile Detector
Ultrasonic Cross-hole Automatic Foundation Pile Detector

Ultrasonic Cross-hole Automatic Foundation Pile Detector

Product ID : C71
Product Tags :
Product Description
Application

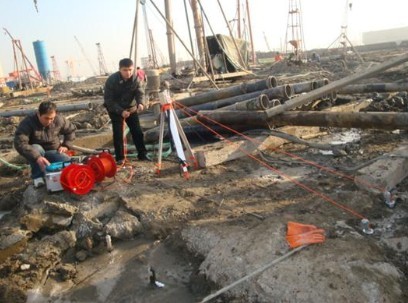

1, Continuous rapid testing of building foundation piles by cross-hole sonic logging
2, Inspection of concrete defects by ultrasonic method, such as uncompacted, cellular, hole area and so on
3, Detecting strength of concrete by ultrasonic-rebound combine method
4, Detecting strength of concrete crevice by ultrasonic-rebound combine method
5, Detecting defects of one hole by one trigger two receive.
6, Testing mechanical properties of non-metallicmaterial, such as rock, concrete etc.

Performance
1, High efficient testing: lifting speed more than 60m/s(20cm distance).
2, Display test data graphically: watch analyze result directly.
3, Fast and precise automatic judge sound parameters: real-time wave display to ensure test efficiency.
4, Humanized software design, apply to user and construction plant. Ensure user handle it easily.
5, Linking the rebound apparatus directly, detecting strength of concrete by ultrasonic-rebound combine method with linking rebound apparatus directly, and get strength of concrete in time.
6, Being sensitive to receiving signal: receive signal more than 10m in concrete without defects.
7, Can supply smooth power for radial energy transducer needless external power
8, Standard USB storage with big capacity
9, Interior lithium battery, work more than 6 hours
10, Portable, impact design and light apparatus
11, extending function for testing thickness of concrete by impacting echo method
12,Professional and powerful analysis software. Export the data to excel or word for advance analysis.

Technical Data
Item
Specification
Item
Specification
Main control unit
high-performance embed computer
Display
640*480, LCD high brightness TFT
Input
Keyboard
Storage
1G(internal)+2G(U Disk)
Interface
USB
Maximum hoisting speed
60m/min(20cm distance)
Receive Channel
Two
Maximum sampling length
64k
Trigger Mode
Continuous trigger, external trigger
Transmit Voltage(V)
65, 125, 250, 500, 1000 selectable
Receive sensitivity
≤30μv
Amplifier gain
82dB
Amplifier bandwidth
5Hz~500kHz
Sampling Interval
0.05μs~6.4μs
Phonatory time accuracy
0.05μs
amplitude resolution
0.39%
Power
Interior lithium battery, more 6hours
Connect concrete hammer
YES
(optional) external lithium battery, more than 6hours
Dimension of Frame
260 mm×185 mm×60 mm
DC 12V
Weight
1.75
AC 100V-240V, 50/60Hz
Work temperature
—10 to +40 degree

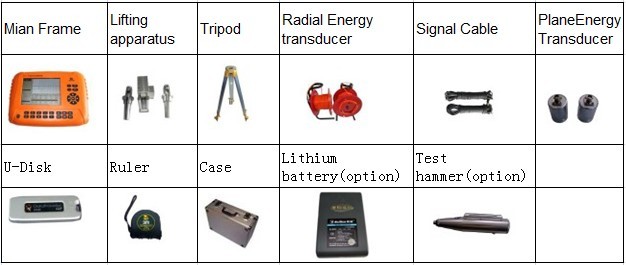

Configuration
