Q61 Concrete Strength Tester
Q61 Concrete Strength Tester Q61 Concrete Strength Tester Q61 Concrete Strength Tester Q61 Concrete Strength Tester Q61 Concrete Strength Tester

Q61 Concrete Strength Tester

Product ID : Q61
Product Tags :
Product Attributes :

Technical specification for inspection of concrete compressive strength by rebound methodJGJ/T23-2011)。

Technical specification for detecting strength of concrete by ultrasonic-rebound combine method(CECS02:2005)

Product Description

l  Performance

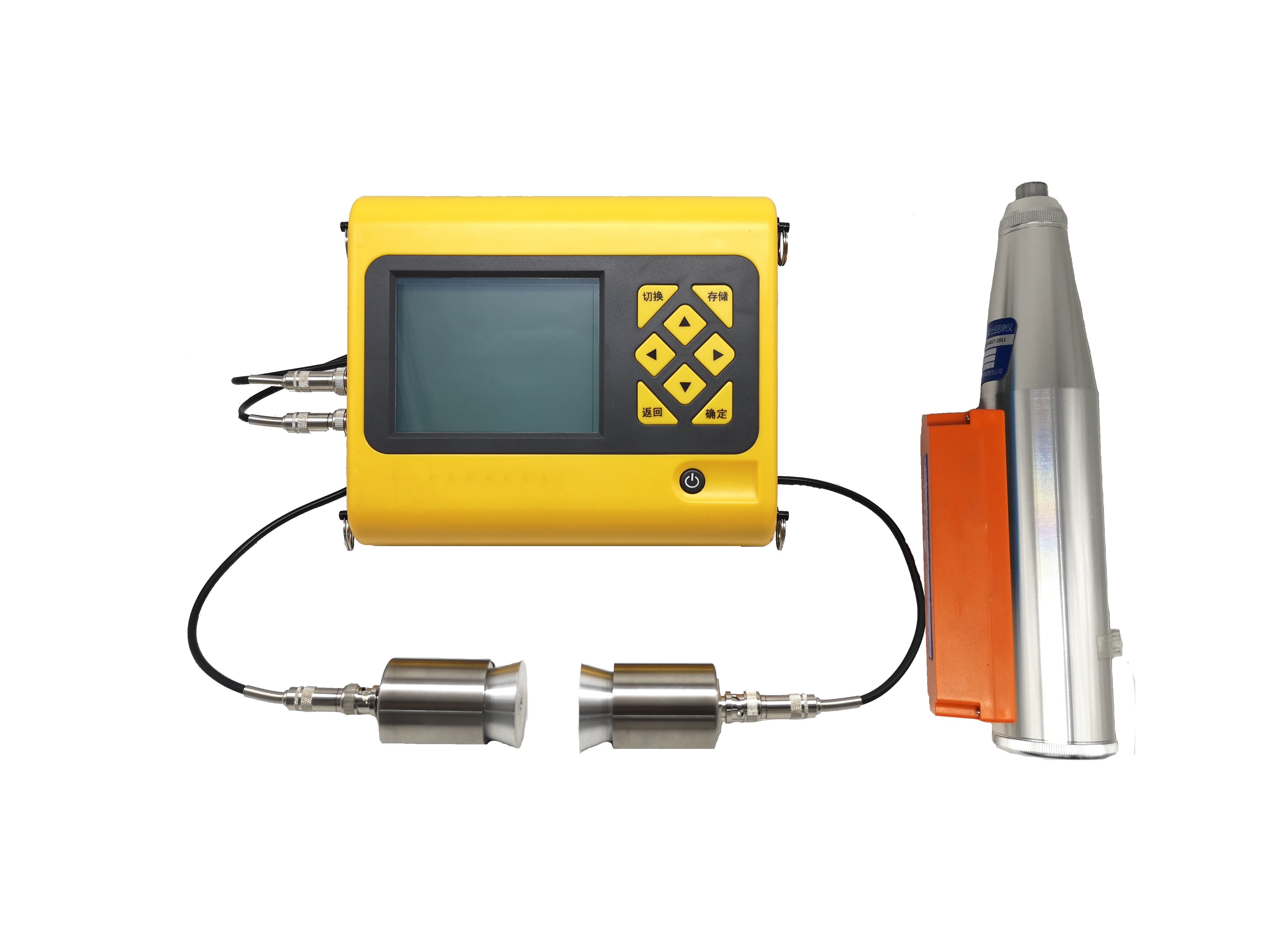

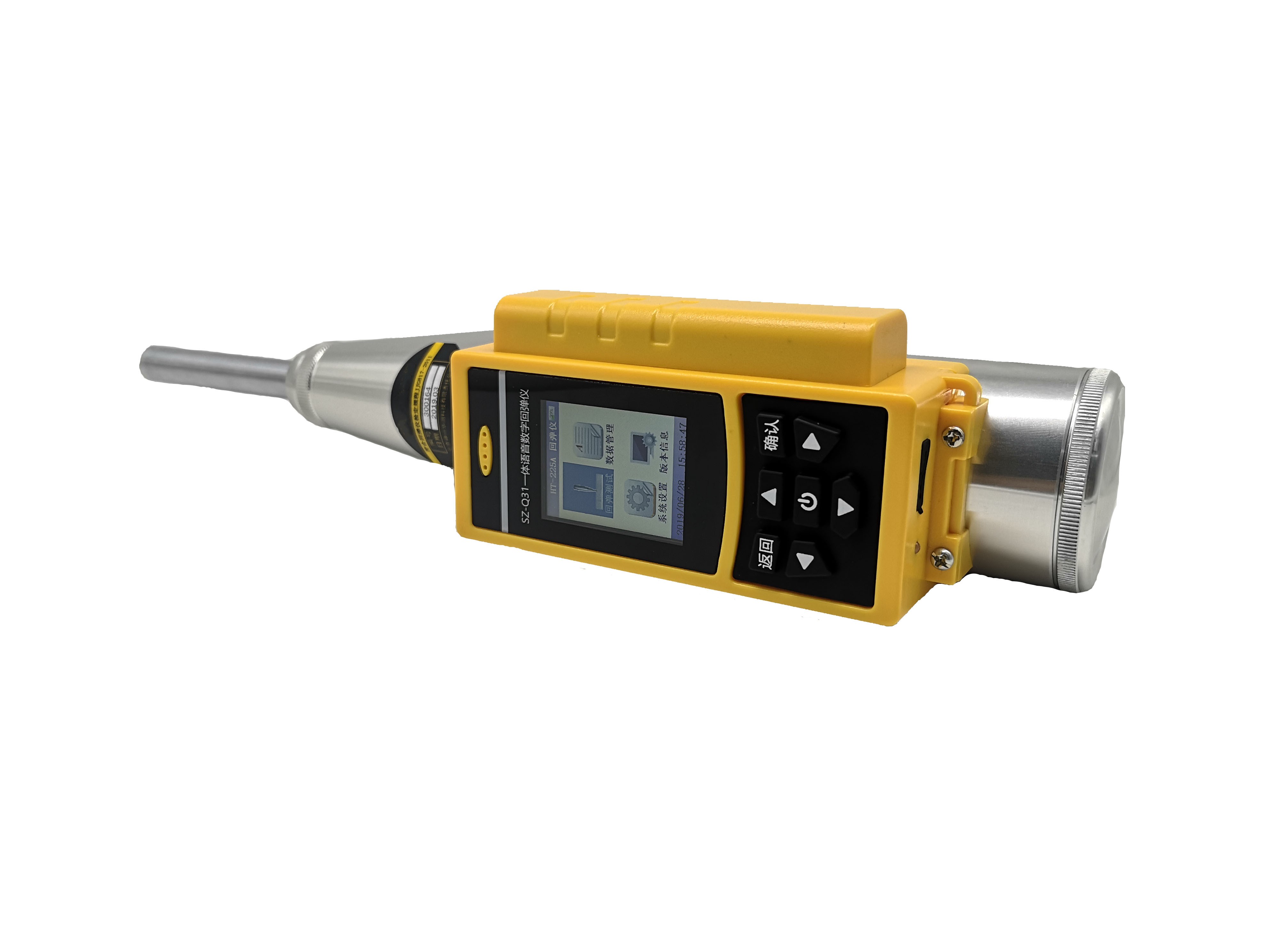

1、   Multi-function for testing compressive strength of concrete. It is used to test the compressive strength of concrete by rebound method and ultrasonic-rebound method.

2、 Get the compressive strength value of concrete by ultrasonic-rebound method in one instrument. it need two instrument usually, one to test sound speed in concrete, the other to test rebound value.

3、 Can save test date. This is convenient for laborer data management.

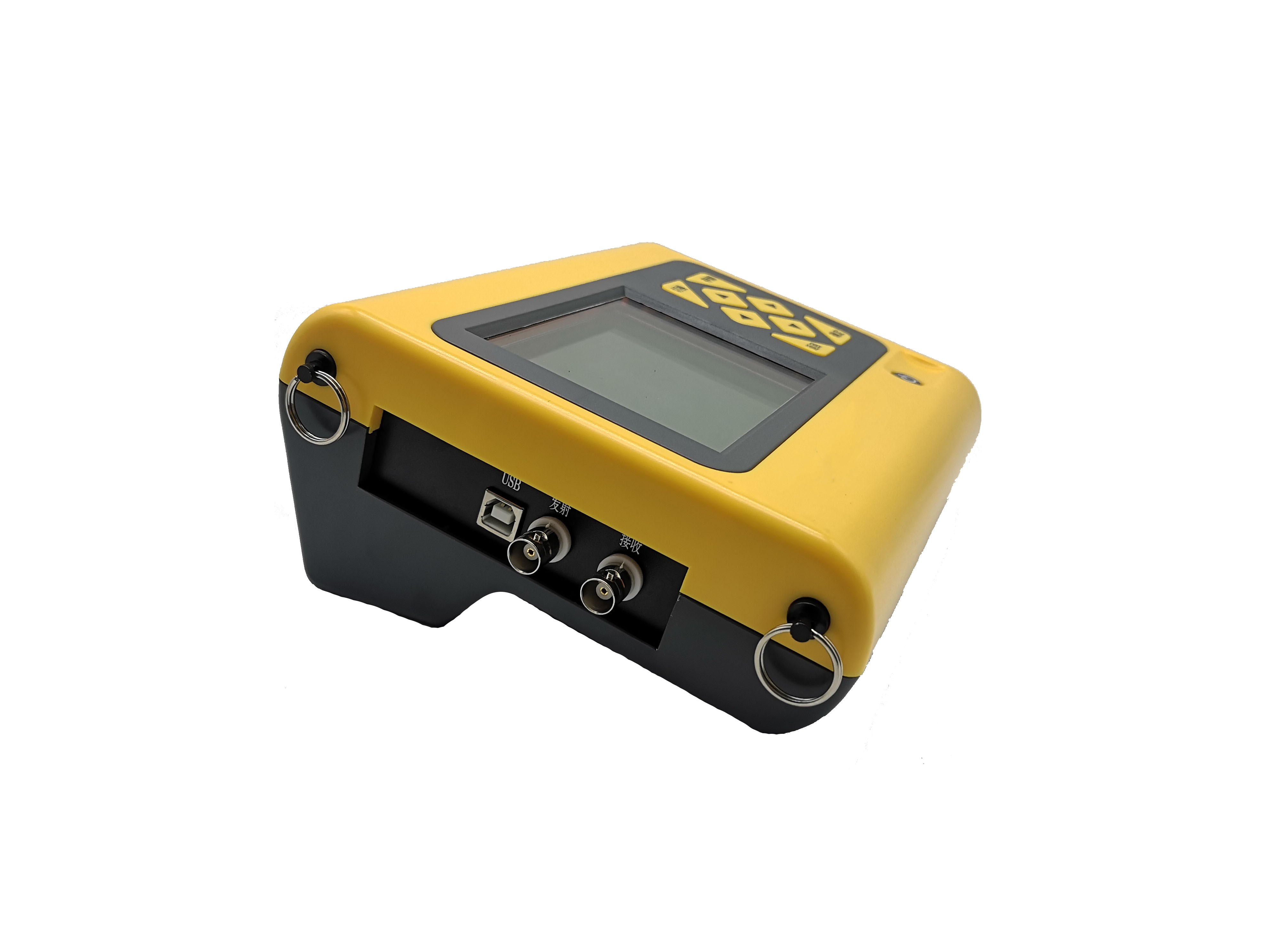

4、 Real USB transmission. Data can be transmit to computer for future process and analysis.

5、 Powerful data process and analysis software in windows. Test data can be export to word or excel for future process and analysis.

l  Technical Data

1、 Permissible sound time error ±0.1μs

2Sensor frequency 50KHz

3、 Rebound kinetic energy 2.207J

4Rebound springs Rigidity785.0±40.0(N/m)

5、 Rebound bar impact length :75.0±0.3 mm

6Rebound value permission error≤±1

7、    Average rebound value on Calibration anvil80±2

8Temperature-4°C+40°C

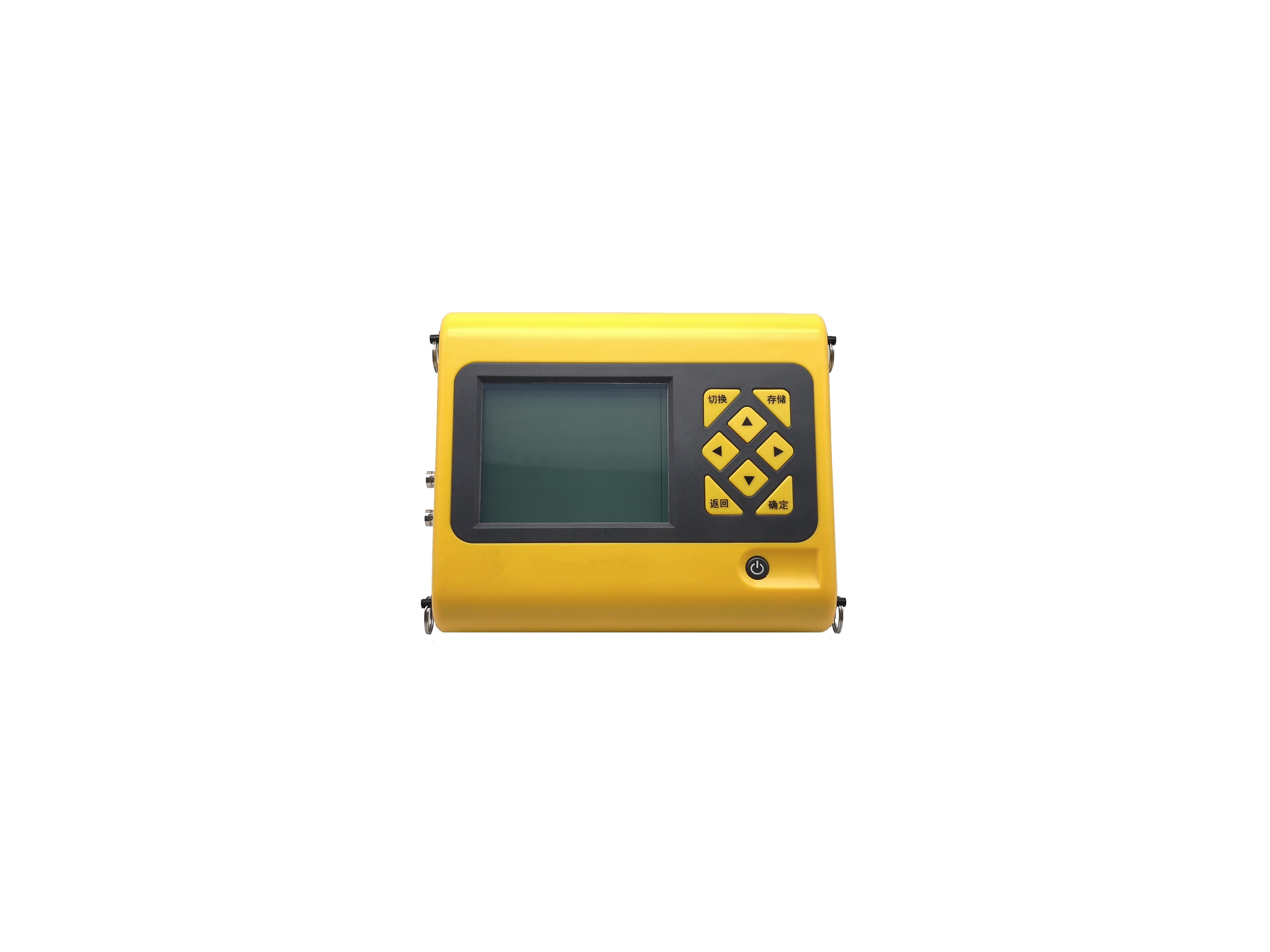

9、    LCD screen160×128(10×8cm)

10Power6 dry cellswork more than 10 times

11Size and 205mmX173mmX86mm

12 Weight: 850g
