Copper foil thickness gauge
Copper foil thickness gauge Copper foil thickness gauge Copper foil thickness gauge Copper foil thickness gauge Copper foil thickness gauge

Copper foil thickness gauge

Product ID : EC-3000
Product Tags :
Product Attributes :

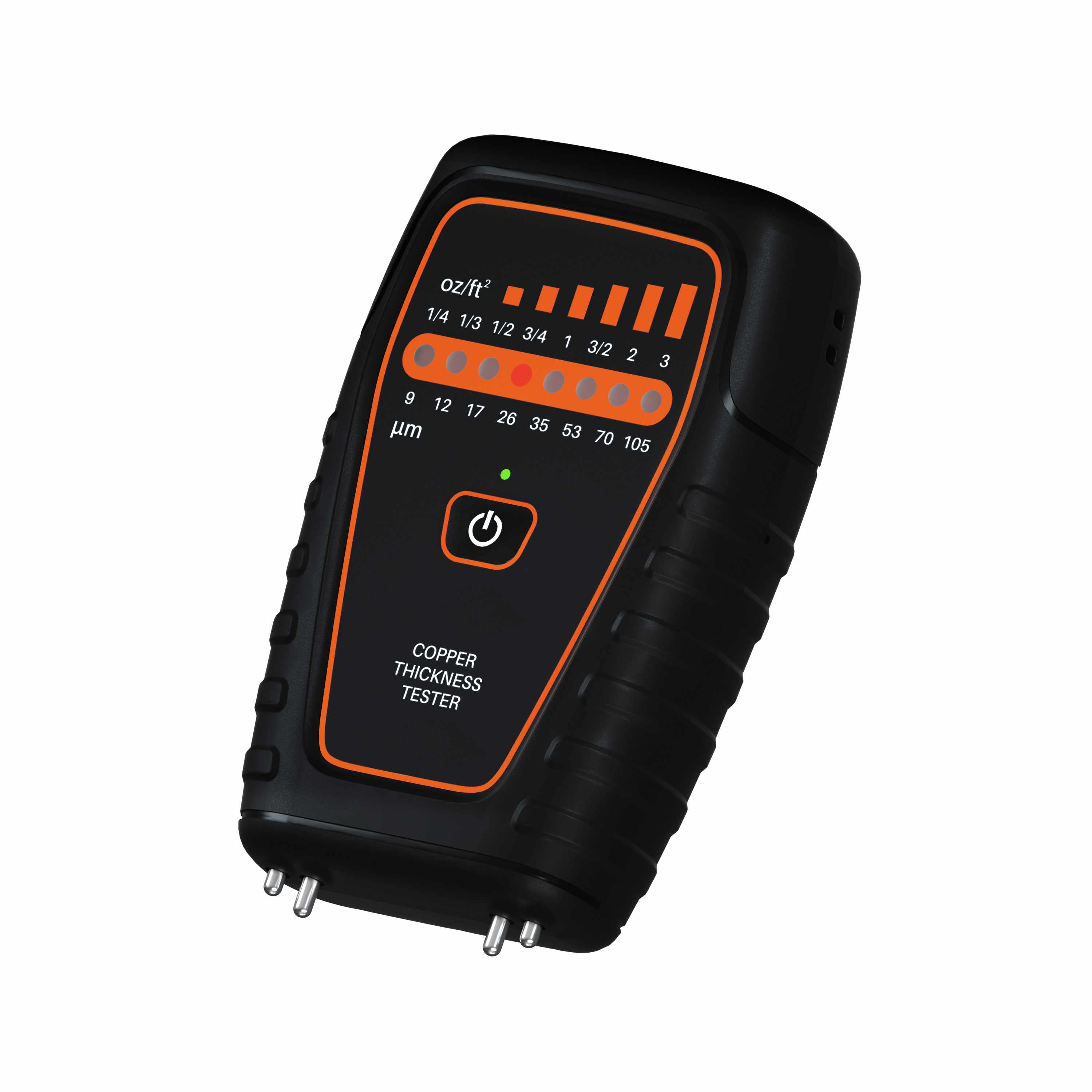

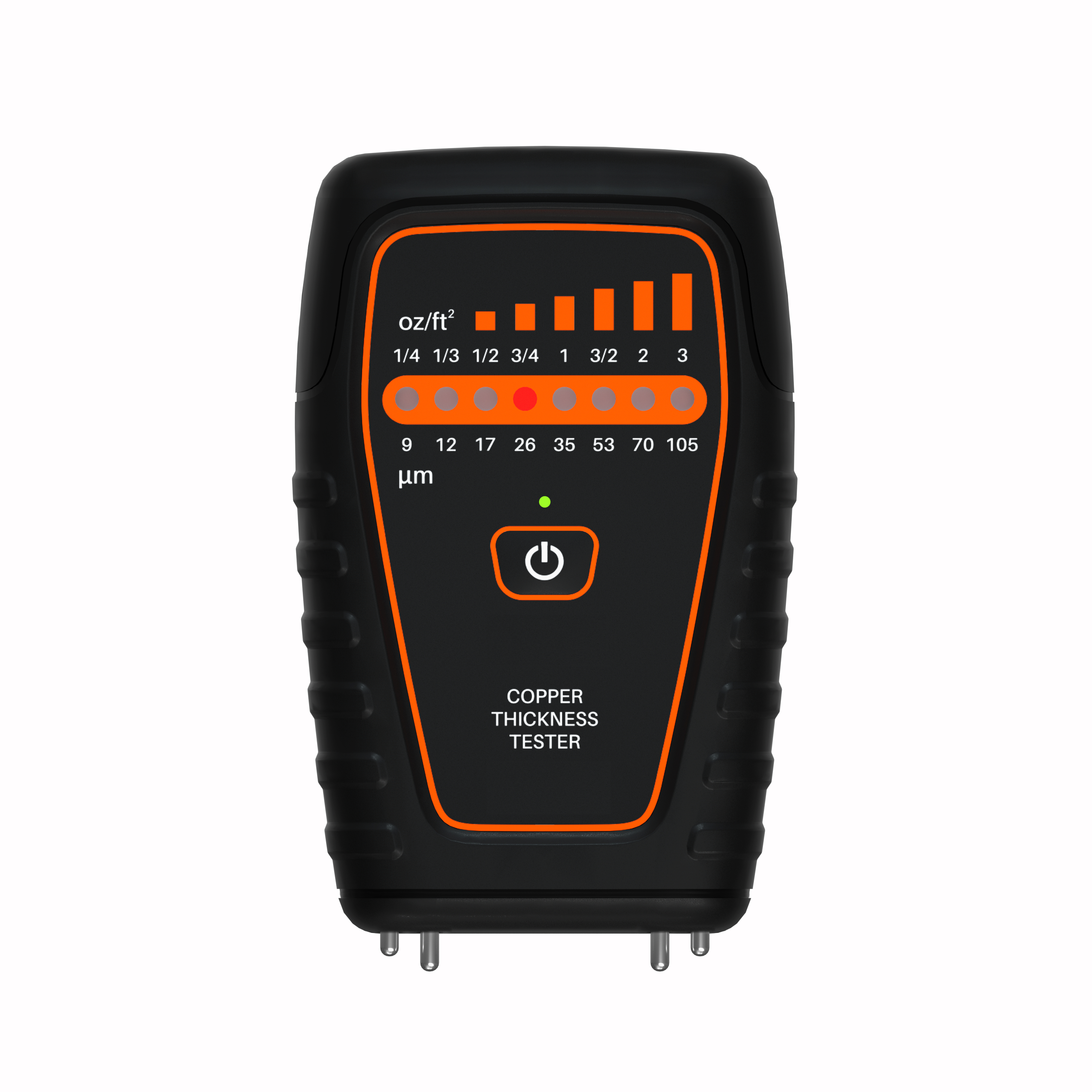

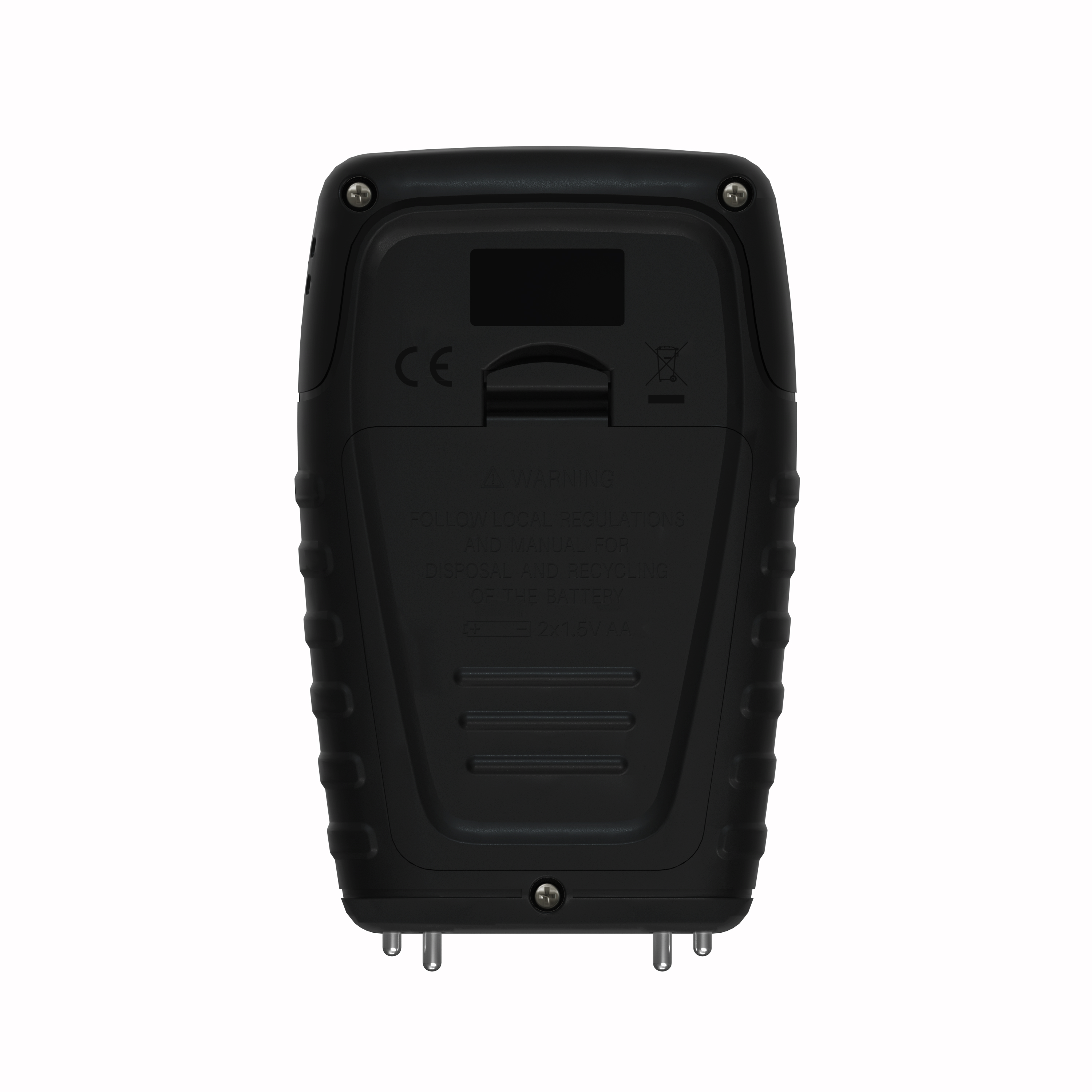

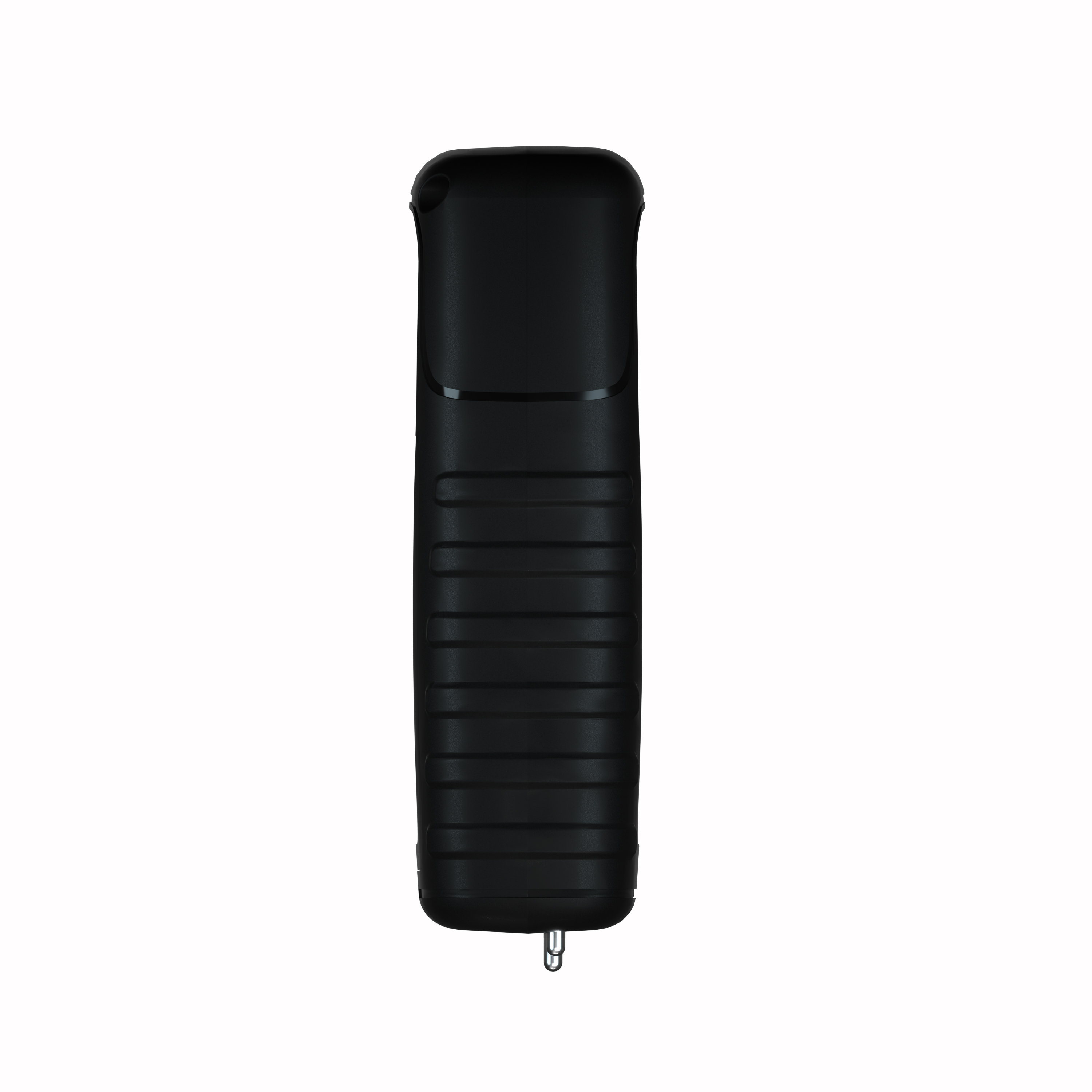

EC-3000 is a handheld copper foil graded thickness gauge. The instrument uses the principle of micro-resistance to measure the thickness of copper foil on the printed circuit board, which can be used to detect the thickness of copper foil on the surface of PCB, CCL or FPC.

EC-3000 has sound and light prompt function, and the measurement result is indicated by LED. The instrument "di" sound prompts the completion of the measurement, and the LED light corresponding to the thickness value is lit at the same time.

EC-3000 is small in size and can be carried anywhere.

Product Description

EC-3000 is a handheld copper foil graded thickness gauge. The instrument uses the principle of micro-resistance to measure the thickness of copper foil on the printed circuit board, which can be used to detect the thickness of copper foil on the surface of PCB, CCL or FPC.

EC-3000 has sound and light prompt function, and the measurement result is indicated by LED. The instrument "di" sound prompts the completion of the measurement, and the LED light corresponding to the thickness value is lit at the same time.

EC-3000 is small in size and can be carried anywhere.



APPLICATION

• PCB copper foil detection

• CCL copper foil detection

• FPC copper foil detection



Model

EC-3000

Measuring range

0—122μm0—3.5oz/ft2

Metric units(μm)

9,12,17,26,35,53,70,105

Imperial units(oz/ft2)

1/4,1/3,1/2,3/4,1,3/2,2,3

Unit

oz/ft2,μm

Operating environment

Temperature: -10~50; Humidity: 20~90%RH(non-condensing)

Storage environment

Temperature: -20~60; Humidity: 20~90%RH(non-condensing)

Power supply

2 AA size 1.5V alkaline batteries/1.2V rechargeable batteries

Protection class

IP20

Dimensions

109*67*31mm

Material

ABS

Weight

About 82g (without battery)
