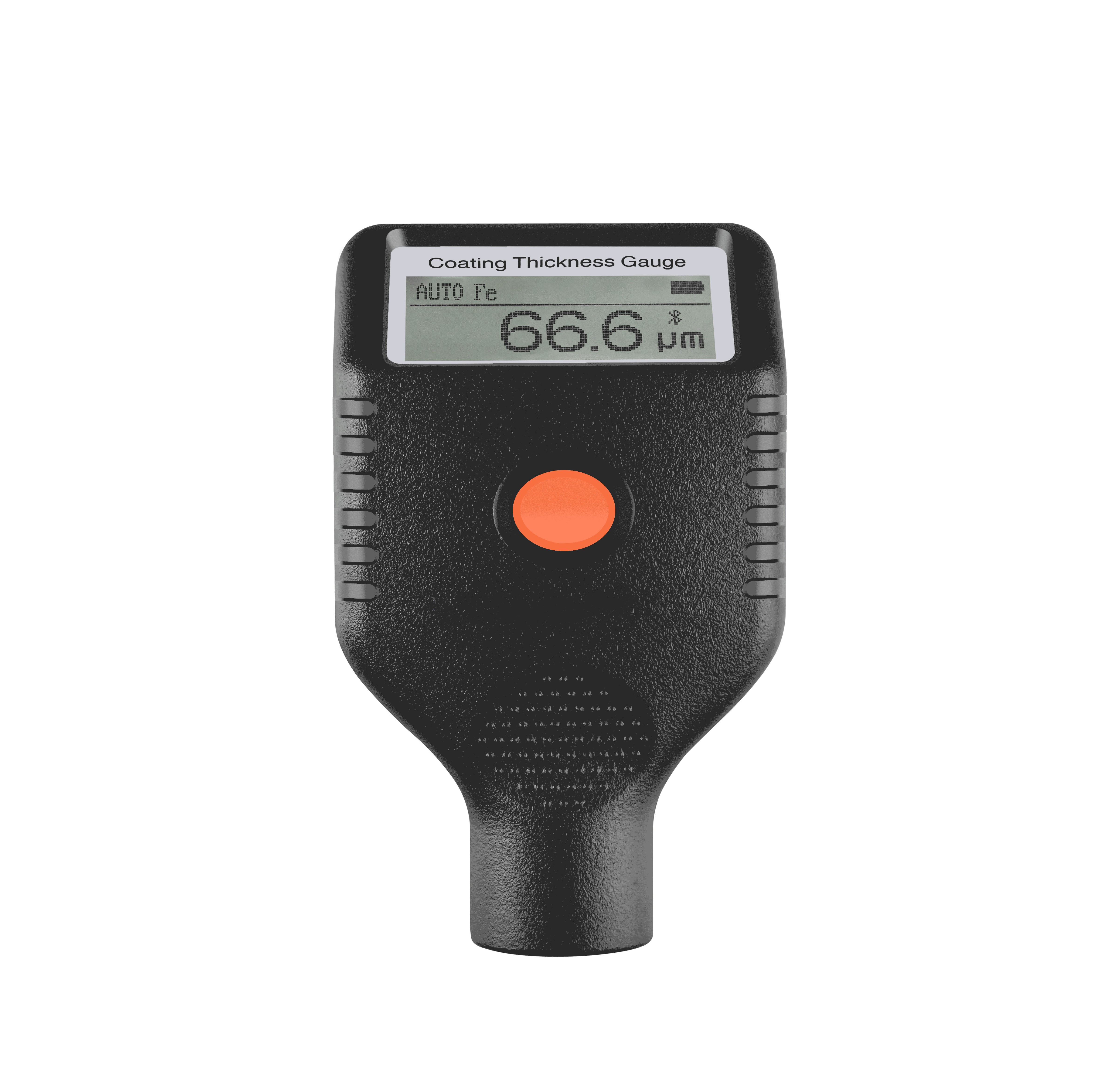

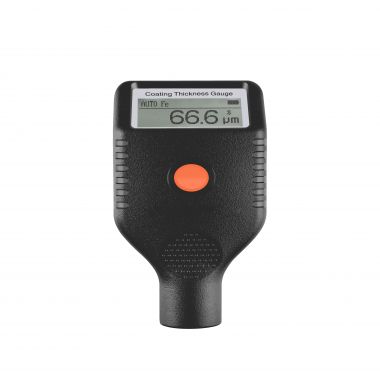

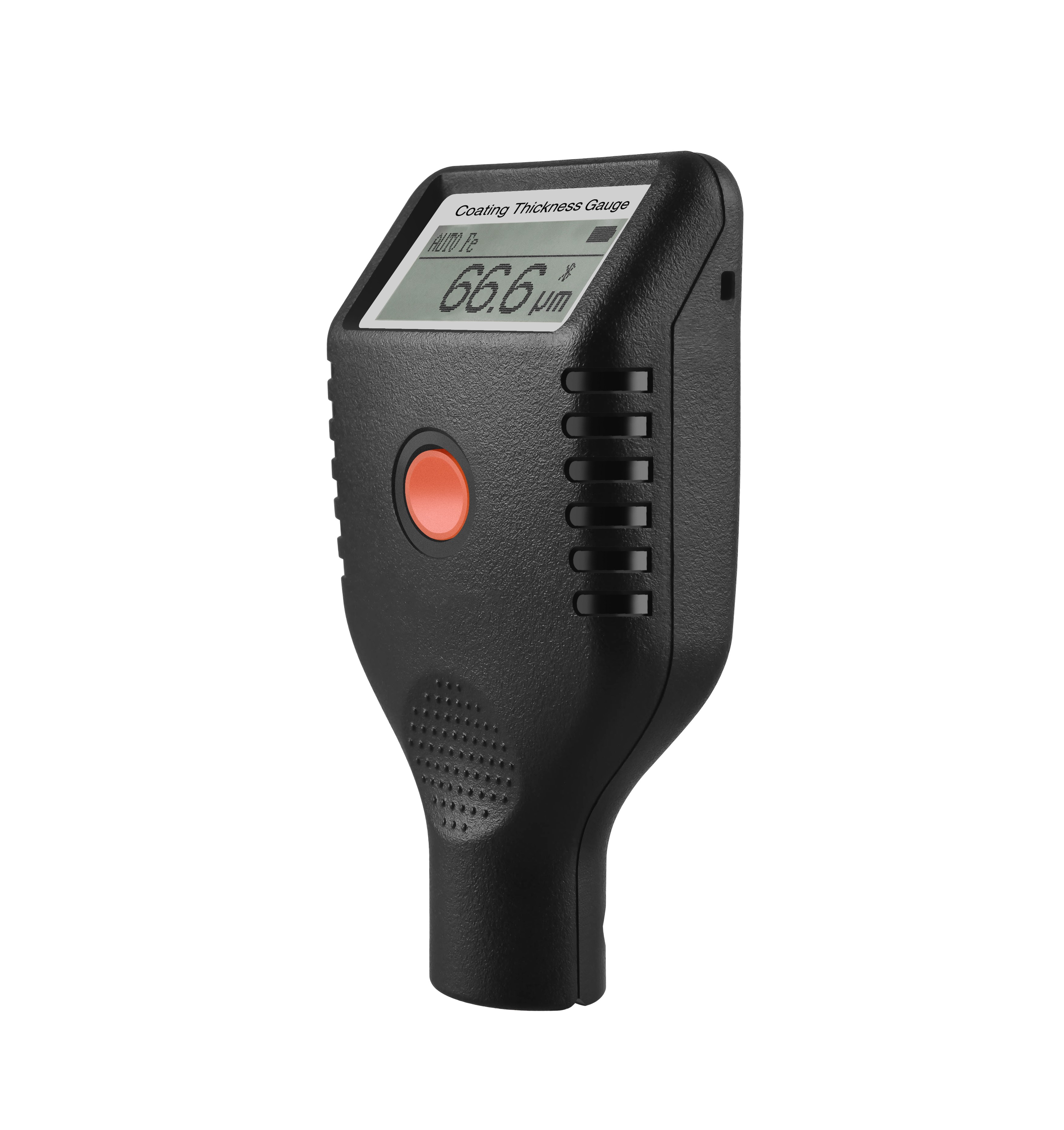

• Integrated probe of magnetic induction and eddycurrent, ruby probe tip
• With Bluetooth and APP function
• 2,000 memory
• Up to 0.1μmresolution
• Up to±(2%+1μm)accuracy
• Up to 0~2000μm measurementrange
• Convenient to use by only one button
• Easy to do zero calibration
• LCD screen
• Up to 2 times/s measurementspeed
• LCD display withbacklight
• Red backlight when alarm
• Power offautomatically
• Low powerprotection

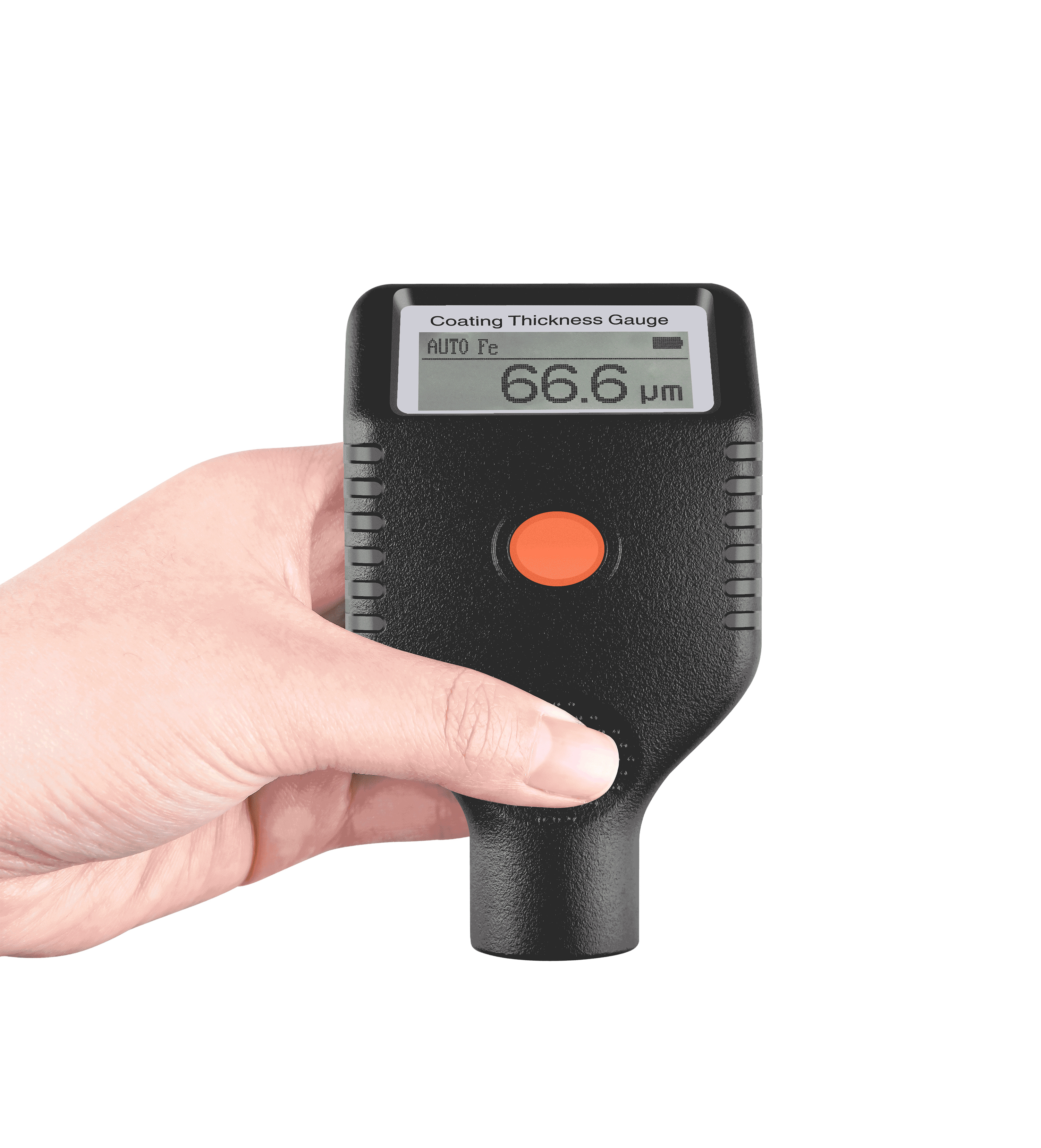

Model |
EC-600 |
|
Probe |
Probe F |
Probe N |
Measuring principle |
Magnetic Induction |
Eddy Currents |
Measuring range |
0~2000μm |
|
Measuring Accuracy |
±(2%+1μm) |
|
Measuring resolution |
0.1μm(0~100μm);1μm(>100μm) |
|
Calibration |
Zero point calibration |
|
Memory |
2000 |
|
Units |
μm、mm、mils |
|
Probe Triggering force |
About0.5~1.2N |
|
Minimum radius of curvature |
Convex5mm;Concave25mm |
|
Minimum measured area |
Diameter 10mm |
|
Minimum thickness of substrate |
0.20mm |
0.03mm |
Maximum measuring speed |
2 times/s |
|
Display |
LCD with backlight |
|
Operation temperature |
Temperature:‐10℃~50℃;Humidity:20%RH~90%RH(Non‐condensation) |
|
Storage temperature |
Temperature:‐10℃~60℃;Humidity:20%RH~90%RH(Non‐condensation) |
|

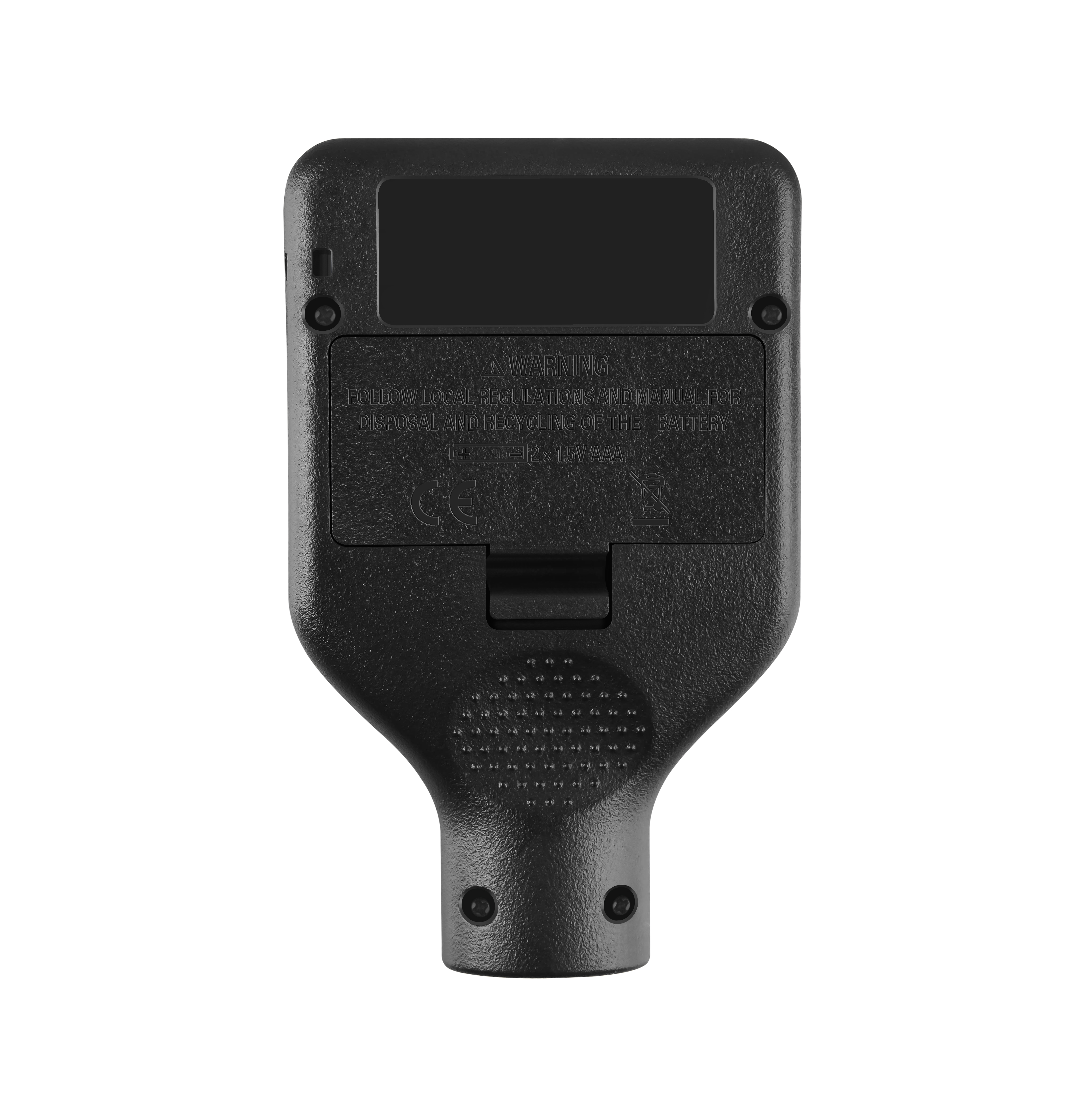

Power supply |
2 pcs AAA battery Or 2 pcsAAA 1.2VNiMH rechargeable battery |
|
IP grade |
IP40 |
|
Dimension |
103mmx62mmx27mm |
|
Case Material |
ABS |
|
Net weight(no battery) |
57g |
|
Warranty |
12 month |
