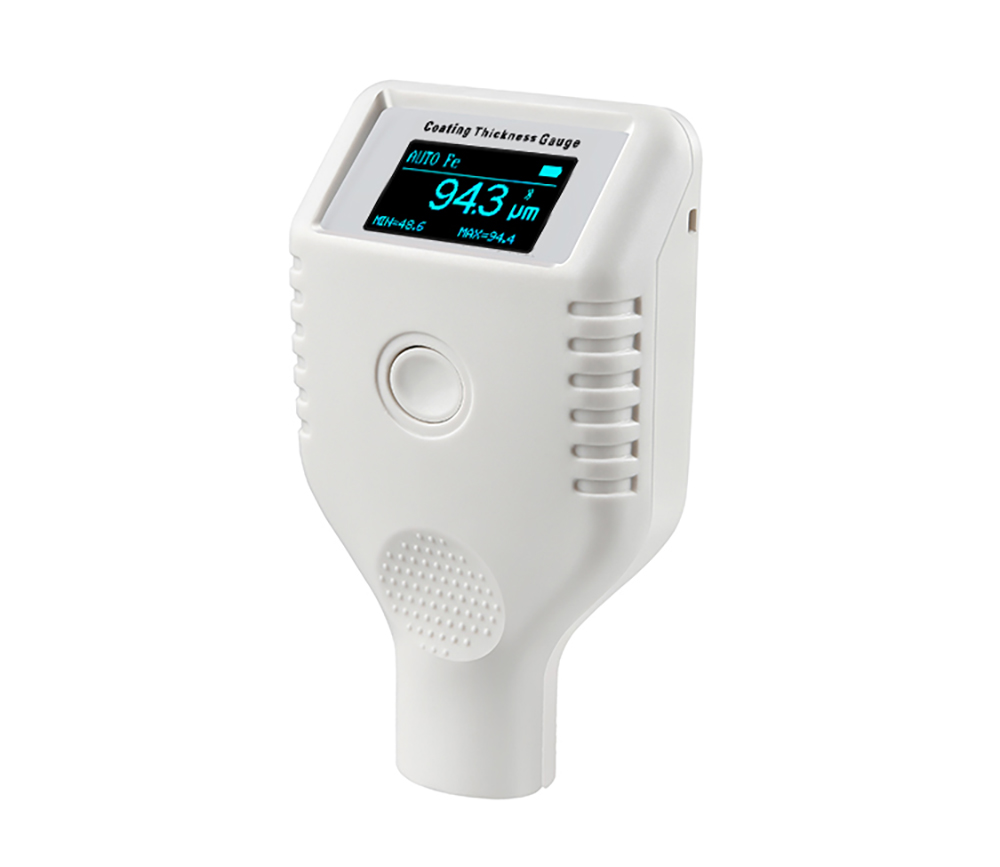

DT-666 coating thickness gauges can be used to measure the thickness of non-conductive coatings on non-ferrous metals and non-magnetic insulating coatings on ferromagnetic metals (such as iron, nickel and cobalt, etc.). They are mainly used for non-destructive thickness measurement for the coatings of paint or galvanized layers on iron and stainless steel, paint or plastic film on aluminum and copper, etc.
DT-600 coating thickness gauges can be used to measure the thickness of non-conductive coatings on non-ferrous metals and non-magnetic insulating coatings on ferromagnetic metals (such as iron, nickel and cobalt, etc.). They are mainly used for non-destructive thickness measurement for the coatings of paint or galvanized layers on iron and stainless steel, paint or plastic film on aluminum and copper, etc.
DT-600 is with internal probe combined with magnetic induction and eddy currents principle, which is with measuring range of 0~2000μm and accuracy of ±(3%+1μm), and the highest resolution is up to 0.1μm.
DT-600 is only with one button, and it is easy to operate. When you start measurement, place the probe vertically and rapidly on a suitable surface, then the device will automatically distinguish the substrate material and measure the thickness of coatings.

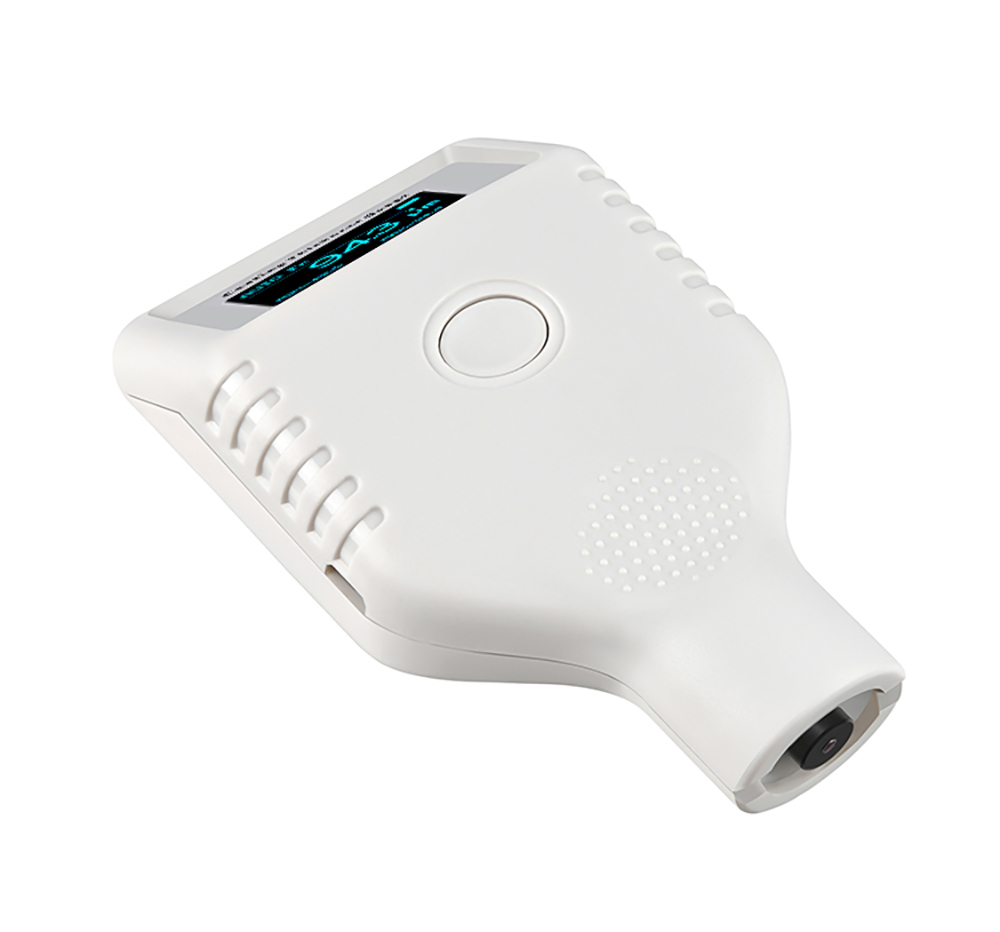

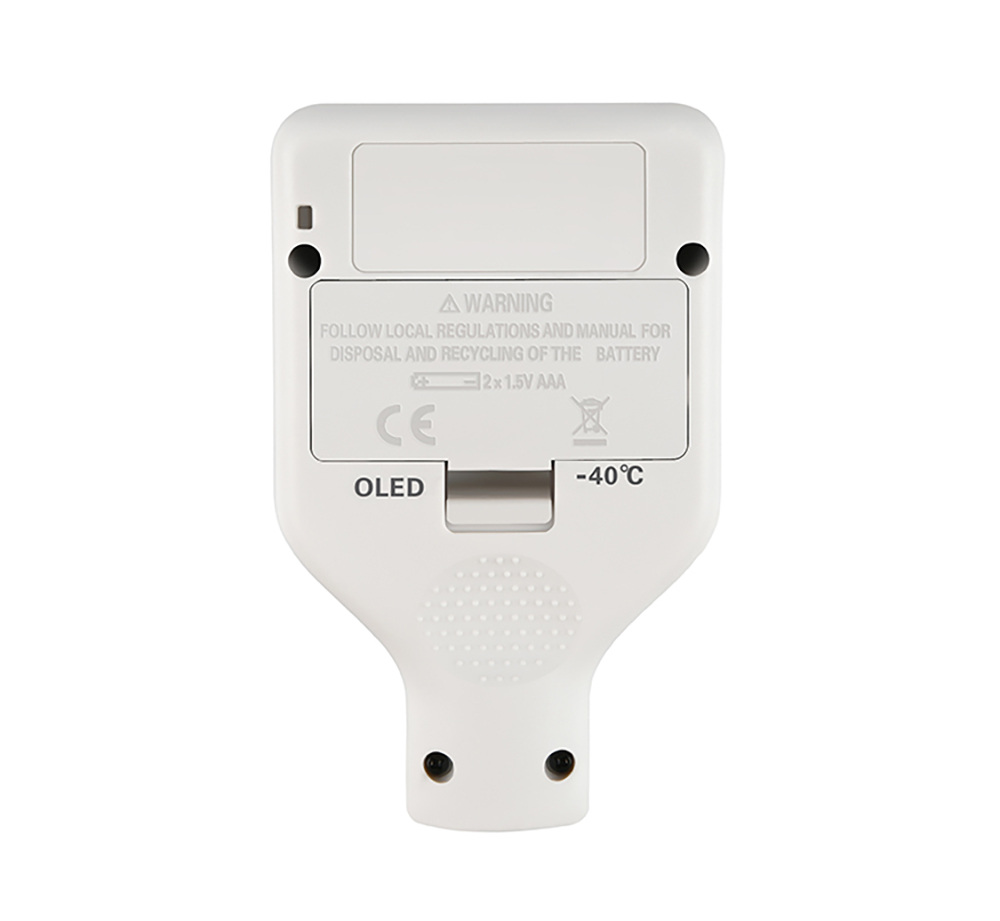

DT-600X optimizes the principle on the basis of DT-600, and uses OLED display to enhance the low temperature working performance. Under the condition of using low temperature resistant battery, the extreme working temperature of DT-600X can reach -50℃.
On the basic of DT-600, DT-600S is upgraded its probe and accuracy, and added new functions. The DT-600S is with stronger anti-interference ability compared with DT-600, and it can work in the high electromagnetic fields environment. The accuracy of DT-600S is ±(2%+1μm), and the measurement result can be sent to the mobile APP in real-time via bluetooth.
DT-600SE is with external probe version, the gauge can be equipped with a variety of separated probes for easy replacement. DT-600SE is better suited to work in narrower spaces or on assembly lines compared with DT-600S.
【FEATURES】
· ruby probe
· With Bluetooth and mobile APP (DT-600S/SE)
· Response time up to 0.3 seconds
· Can work in low temperature as low as -40℃ (DT-600X)
· Resolution up to 0.1μm
· Accuracy ±(2%+1μm) (DT-600S/SE)
· Measuring range 0~2000μm
· Display the maximum, minimum,average and numbers of readings
· Can recall 10 measurements
· One button
· Zero calibration supported
· External probe optional (DT-600SE)
· Dot matrix display
· Automatic shut-down
· Low power protection
【APPLICATION】
· Laboratory physical measurement and recording
· Boiler equipment operation
· Concrete pouring
· Metal processing
· Food
· Medicine
· Household
· Industry, aerospace
· Cold chain transportation
· Car market
· Livestock
· Supermarket
