Coating Thickness Gauge
Coating Thickness Gauge Coating Thickness Gauge Coating Thickness Gauge Coating Thickness Gauge Coating Thickness Gauge

Coating Thickness Gauge

Product ID : EC-470
Product Tags :
Product Attributes :

EC-470A and EC-470B have a measurement range of 0~2000μm, with a resolution of up to 0.1μm. When measuring, the user only needs to quickly fit the probe tip to the surface of the object to be measured. When the probe shrinks into the instrument, the instrument can automatically distinguish the properties of the substrate and measure the thickness of the coating (plating) layer.

Product Description

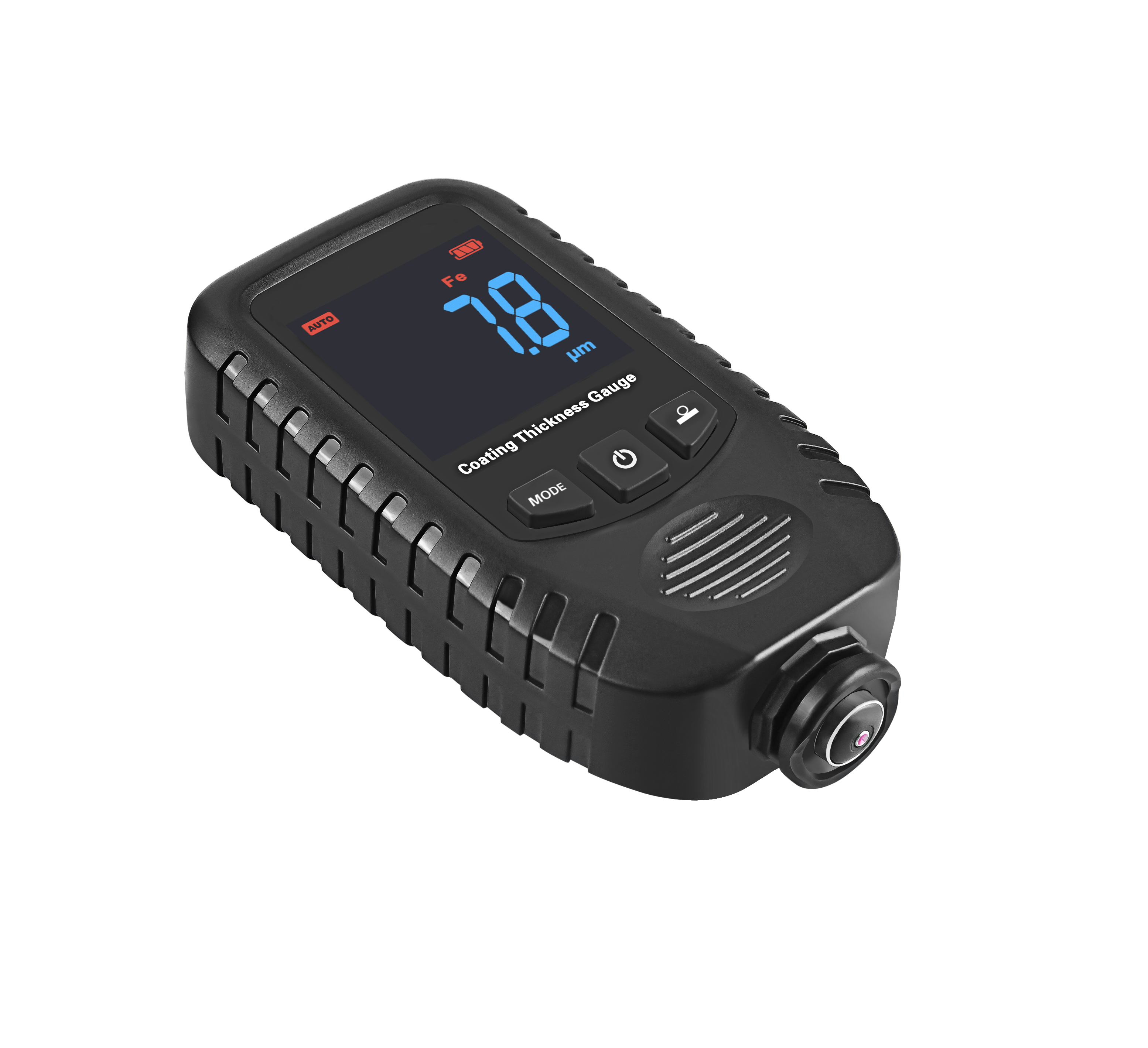

The EC-470A and EC-470B thickness gauge has a built-in magnetic induction and eddies current effect integrated probe, which can non-destructively measure the thickness of non-conductive coatings on metal surfaces and non-ferromagnetic metal coatings on ferromagnetic metals (such as iron, nickel, cobalt). Specific uses include measuring the thickness of the paint or galvanized layer on the surface of iron and stainless steel and the thickness of the paint or plastic film on the surface of aluminum and copper.

EC-470A and EC-470B have a measurement range of 0~2000μm, with a resolution of up to 0.1μm. When measuring, the user only needs to quickly fit the probe tip to the surface of the object to be measured. When the probe shrinks into the instrument, the instrument can automatically distinguish the properties of the substrate and measure the thickness of the coating (plating) layer.

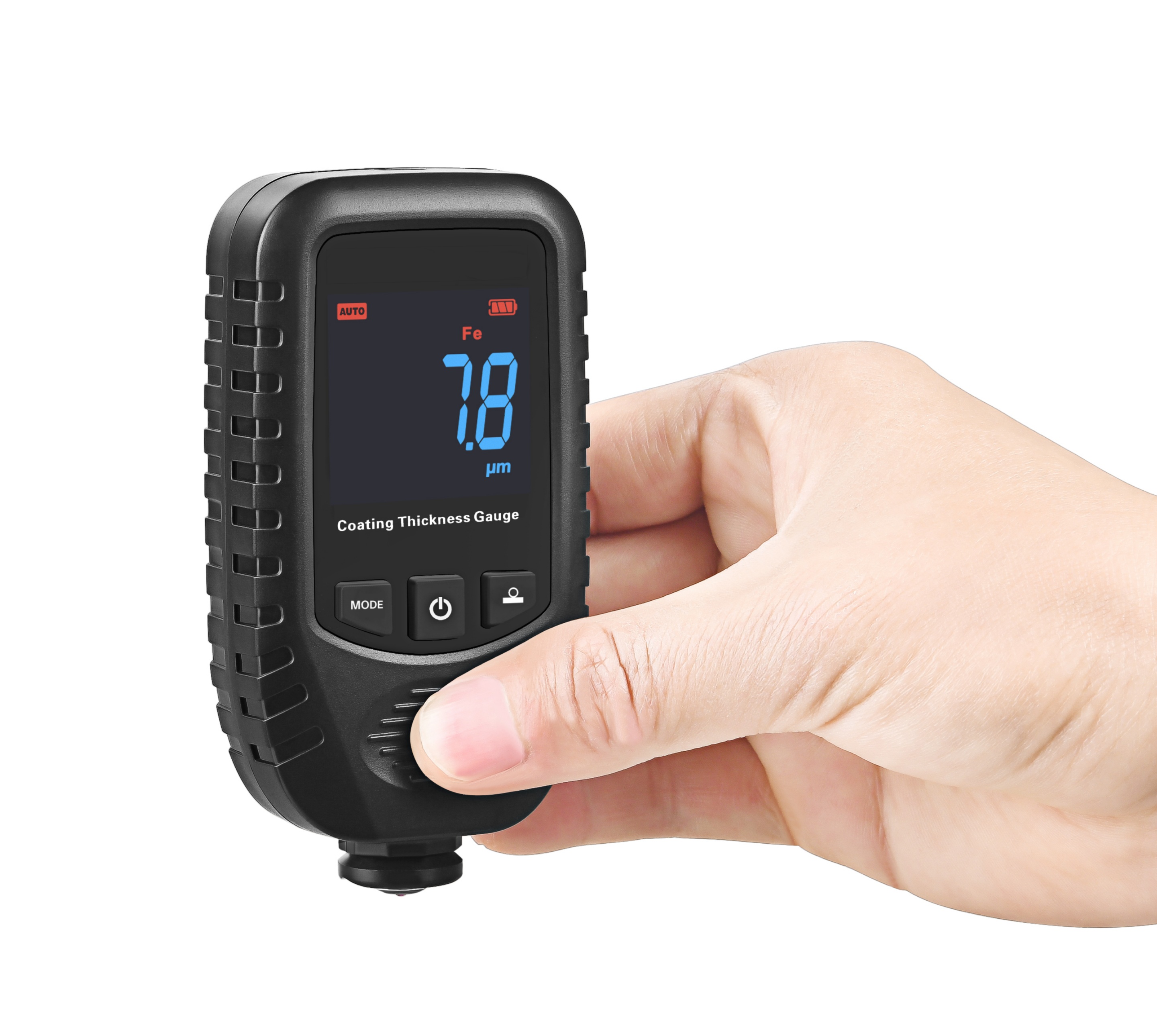

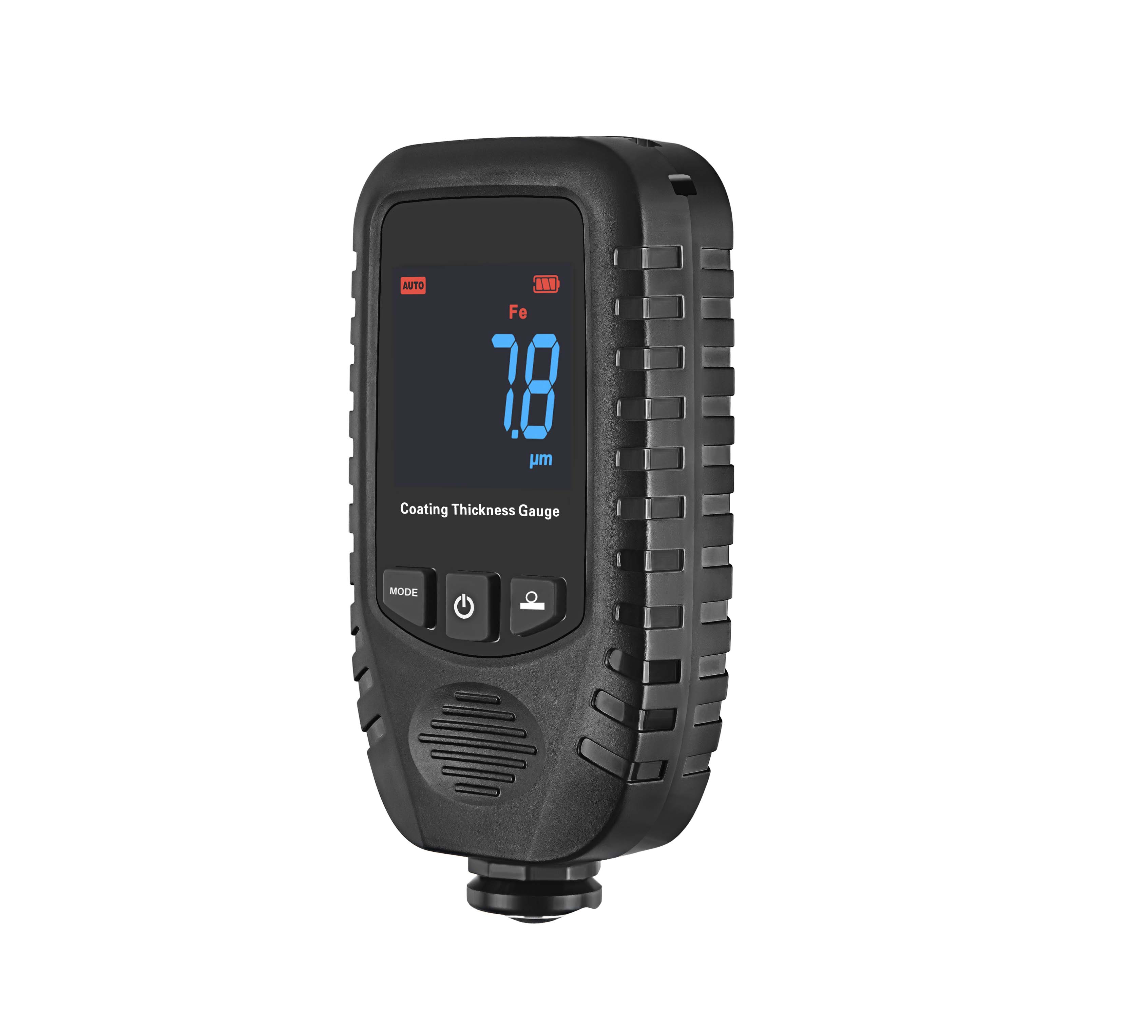

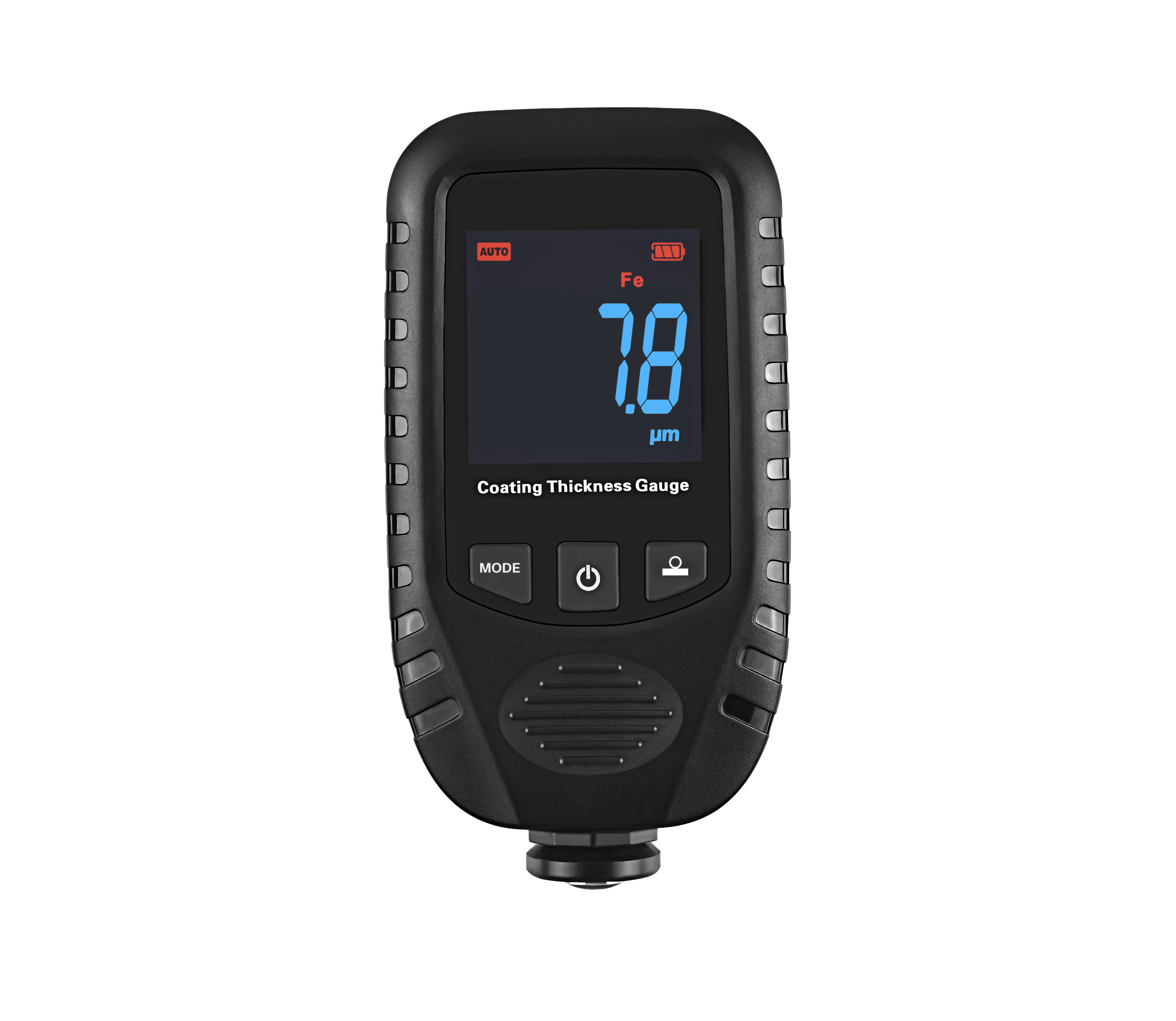

EC-470A and EC-470B have a streamlined data display interface. EC-470A uses a black and white segment LCD screen for outdoor or high-light environments. EC-470B uses a color segment LCD screen for indoor or low-light environments.



Model

EC-470A

EC-470B

Probe type

Internal

Measuring principle

Fe: Magnetic induction;NFe: Eddy currents

Measuring range

0~2000μm

Accuracy

±(3%+1μm)

Resolution

0.1μm(0~100μm);1μm(>100μm)

Unit

μm,mm,mil

Iron putty power

identification range

0~1000μm

Iron-galvanized substrate

recognition range

3~500μm

User calibration method

Zero calibration

Probe triggering force

0.5~1.2N

Minimum radius of

curvature of substrate

Convex 5mm

Concave 25mm

Minimum measurement area

Diameter 15mm

Minimum substrate thickness

Fe:0.30mm

NFe:0.05mm

Maximum measuring speed

2 readings/sec

Display

black and white segment LCD screen

color segment LCD screen

Operating environment

-10~50

Storage environment

-20~60

Power supply

2 pcs AAA 1.5V alkaline batteries;2 pcs AAA 1.2V rechargeable batteries

Protection class

IP40

Dimensions

102*53.6*25mm

Material

ABS

Weight

About 75g(without batteries)
