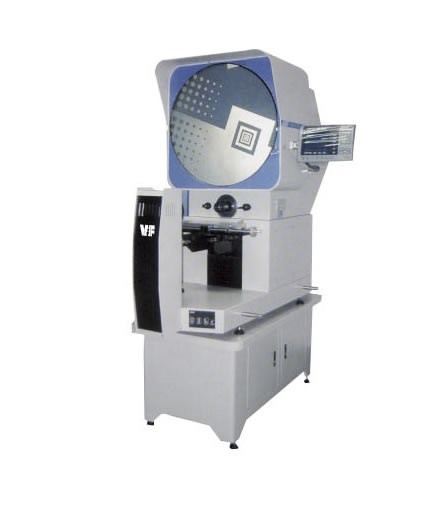

Horizontal profile projector TCPJ-4025W is a photoelectric measuring system of high precision and efficiency，can inspect all kinds of surface and outline of the complicated work pieces such as cam, template, tread, gear, perform willing cutter and so on. The measurement data can be printed and output. It requires in the checking department and workshop and is widely used machinery, mould, tool, meter, and light industry.
|
Working table
|
Working table size(mm)
|
450*200
|
|||
|
X-axis travel(mm)
|
250
|
||||
|
Z-axis travel(mm)
|
150
|
||||
|
Y-axis travel(mm)
|
100 for focus
|
||||
|
Turning range
|
±15°
|
||||
|
Resolution(X-axis, Z-axis)
|
0.001 mm |
||||
|
The indication error of coordinate(µm)
|
<=(3+L/200) |
||||
|
Dimension
|
L*W*H(mm)
|
1215*646*1210
|
|||
|
Weight
|
Unit:(kg)
|
240
|
|||
|
Projector screen
|
Screen size(mm)
|
Ø400
|
|||
|
Screen rotary range
|
0°~360°
|
||||
|
Rotary angle Resolution
|
1´ or 0.01°
|
||||
|
Lens
|
Magnification
|
10Xoption
|
20X option
|
50X option
|
100X option
|
|
Object view(mm)
|
Ø40
|
Ø20
|
Ø8
|
Ø3
|
|
|
Working distance(mm)
|
103.9
|
95.1
|
65.7
|
35.0
|
|
|
Data processing system
|
DC-3000 multi-function data processing system ,appearing in English ,can be used to gather the data and measure the point ,line, circle, angle and distance |
||||
|
Illumination
|
Transmission: 24V/150W, cooling by fans.
Reflection: 21V/150W, illuminated by two fibers, cooling by fans. |
||||
|
Power
|
110V/220V(AC);50/60HZ; Total power=400W
|
||||
|
Option
|
Mini-printer, Edge detector, M2D software and so on, please refer to Accessories for measuring projector for more details. |
||||
