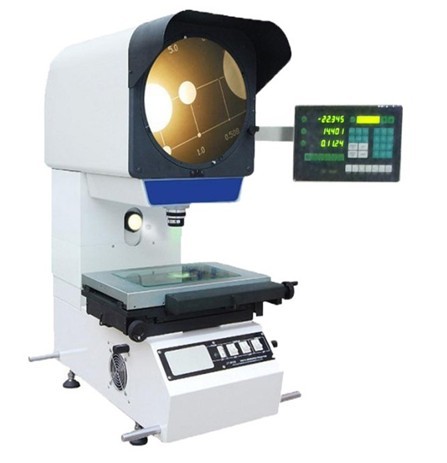

Model
|
TCPJ-3010
|
TCPJ-3015
|
TCPJ-3020
|
TCPJ-3025
|
|||||||
|
Table
|
The metal table’s size (mm)
|
306 x 152
|
340 x152
|
404 x 228
|
450 x 280
|
||||||
|
The glass table’s size (mm)
|
175 x100
|
196 x 96
|
260 x 160
|
306 x 196
|
|||||||
|
X-axis travel (mm)
|
100
|
150
|
200
|
250
|
|||||||
|
Y-axis travel (mm)
|
50
|
50
|
100
|
150
|
|||||||
|
Z-axis travel (mm)
|
90 for focus
|
||||||||||
|
Measuring accuracy
|
(3+L/50)um
|
||||||||||
|
Resolution(X-axis,Y-axis)
|
0.001 mm |
||||||||||
|
Screen size (mm)：
|
Ø 312 Used range>Ø 300(with the meter line) |
||||||||||
|
Screen rotary range：
|
0°~360°
|
||||||||||
|
Rotary angle Resolution
|
1´ or 0.01°
|
||||||||||
|
Lens
|
Magnification
|
10X
|
20X
|
50X
|
100X
|
||||||
|
Object view
|
Ø30
|
Ø15
|
Ø6
|
Ø3
|
|||||||
|
Working distance
|
77.7mm
|
44.3mm
|
38.4mm
|
25.3mm
|
|||||||
|
Max. work-piece height
|
80mm
|
80mm
|
80mm
|
80mm
|
|||||||
|
Data processing system
|
DC-3000 multi-function data processing system ,appearing in English, can be used to gather the data and measure the point ,line, circle, angle and distance |
||||||||||
|
Cold
|
By three fans
|
||||||||||
|
Illumination
|
The illumination of transmission and reflection: 24V/150W-halogen lamp. |
||||||||||
|
Power
|
110V/220V(AC), 50/60HZ, Total power=400W
|
||||||||||
|
Dimensions
|
770*550*1100
|
770*550*1100
|
780*780*1100
|
810*780*1120
|
|||||||
|
Weight
|
170
|
180
|
190
|
200
|
|||||||
|
Option
|
Mini-printer, Edge detector, M2D software and so on, please refer to Accessories for measuring projector for more details. |
||||||||||
