Product Description

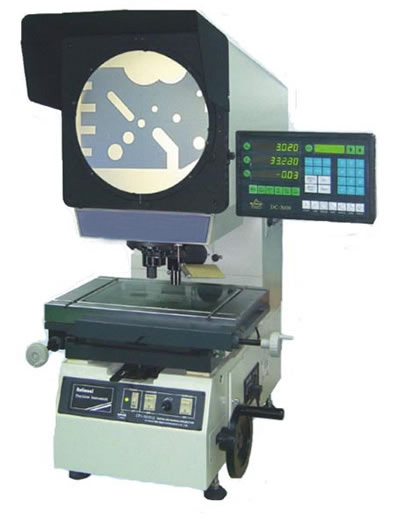

TCPJ-3000(Z) series of profile projectors are photoelectric measuring system of high precision and efficiency. The image on the screen is in the same direction with the work pieces. This series profile projector is widely used in the trade of mechanism, meter, electricity, light industry, college, research institute and measurement –inspecting department. This instrument can inspect all kinds of surface and outline of complicated work-pieces such as template, pressing work-pieces, cam, thread, gear, milling cutter and so on.
TCPJ-3000Z series Profile projector is famous for its excellent quality of optical system. This series profile projector is processed of clear of clear image and accurate magnification. The error of contour measuring is under 0.08% under the illumination. The indication error of the coordinate is under (3+l/75) μm, (L is the length of the work pieced to be measured, unit: mm).This instrument provides the DC-3000 data processing system and foot-switch, which are convenient to output and gather the data.
|
Model
|
TCPJ-3015CZ
|
TCPJ-3020CZ
|
TCPJ-3025CZ
|
|
|
Working table
|
The metal table's size(mm)
|
354*228
|
404*228
|
450*280
|
|
The glass table's(mm)
|
210*160
|
260*160
|
306*196
|
|
|
X-axis,travel(mm)
|
150
|
200
|
250
|
|
|
Y-axis travel(mm)
|
100
|
100
|
150
|
|
|
Z-axis travel(mm)
|
100
|
100
|
100
|
|
|
Weight
|
(kg)
|
170
|
175
|
180
|
|
Dimension(L*W*H)
|
(mm)
|
780*810*1120
|
780*810*1120
|
780*810*1120
|
|
Measruing accuracy
|
(μm)
|
(3+L/75)
|
(3+L/75)
|
(3+L/75)
|
|
Resolution(X-axis,Y-axis)
|
0.5μm
|
|
Projector screen
|
Screen size(mm)
|
Ф312 used range>Ф300(with the metter line)
|
|
Screen rotary range
|
0°～360°
|
|
|
Rtary angle resolution
|
1‵ or 0.01°
|
|
Lens
|
Magnification
|
10X(option)
|
20X(option)
|
50X(option)
|
100X(option)
|
|
Object view(mm)
|
Ф30
|
Ф15
|
Ф6
|
Ф3
|
|
|
Working distance(mm)
|
77.7
|
44.3
|
38.4
|
25.4
|
|
|
Max.Workpiece hegiht
|
90mm
|
90mm
|
90mm
|
90mm
|
|
|
Data processing system
|
DC-3000 multi-function data processing system appearing in English,can be used to gather the data and measure the point,line,circle,angle and distance.
|
||||
|
lllumination
|
The illuniation of transmission and reflection:24V/150w-halogen lamp.
|
||||
|
Power
|
110V/220V(AC) 50/60Hz total power=400W
|
||||
|
Cooling
|
By the fans
|
||||
|
Accessories
|
Min-printer(option),Edge detcetor(option),M2D software(option) and so on,please refer to accessories for Profile Projector for more details
|
||||
|
Ideal table
|
Loading weight＞250kg
Dimension:800(L)*550(H)*650(W)mm |
||||
