New product

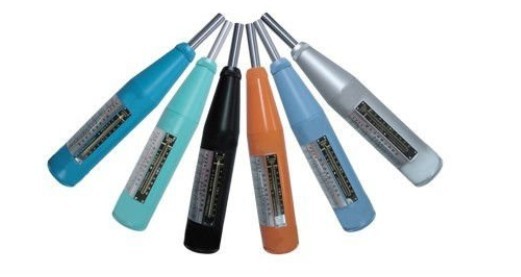

Product Description
1. Center guide rod using imported materials, high precision, wear-resistant;
2. Use of super-hard aluminum shell to avoid on-site work injury apparatus, to extend the service life;
3. Pointer slider with external spring ring structure, both convenient for the friction adjustment, and ensures that the pointer shaft and pointer slider friction uniform, to ensure the accuracy of the instrument.
High accuracy, good quality and cheap, long service life.
|
Technical Data
|
Measuring ranges: 10-60MPa
Impact energy: 2.207J(0.225Kgf.m)
Spring extension: 75mm
The static friction of pointer slider: 0.5N±0.8N
Radius of spherical tip : 25mm±1mm
The average rebound values on steel anvil: 80±2
Housing dimensions: Φ54*278mm
Weight: ≈0.75Kg
Measurement: 345*85*80 mm
|
