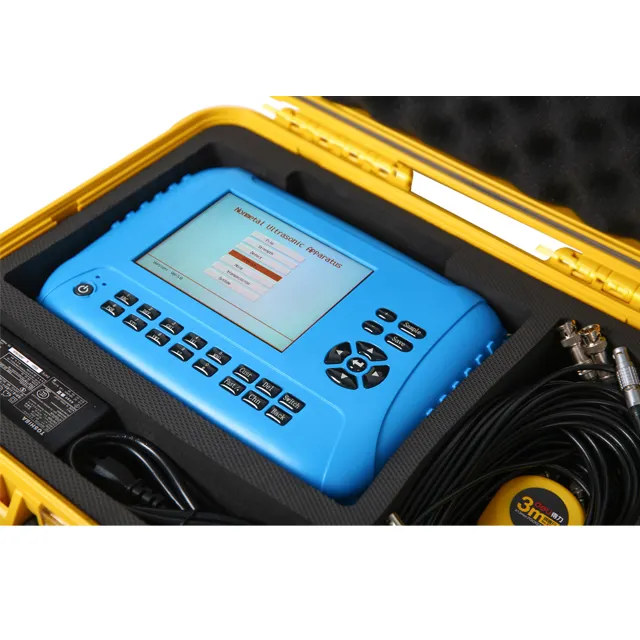

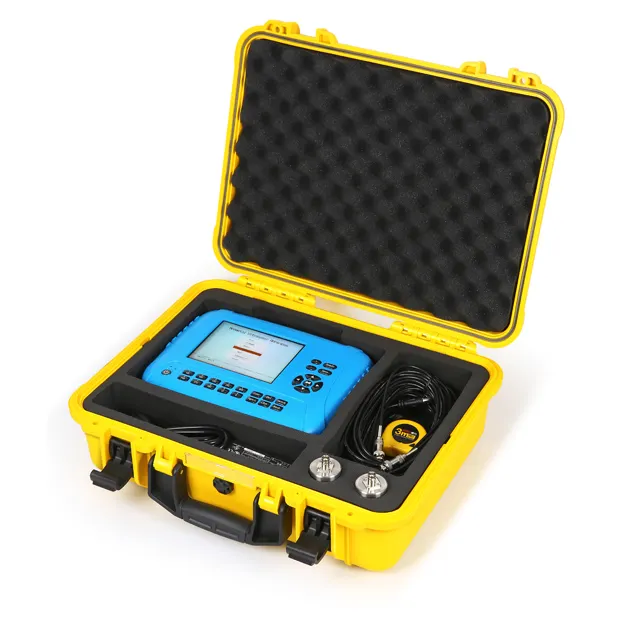

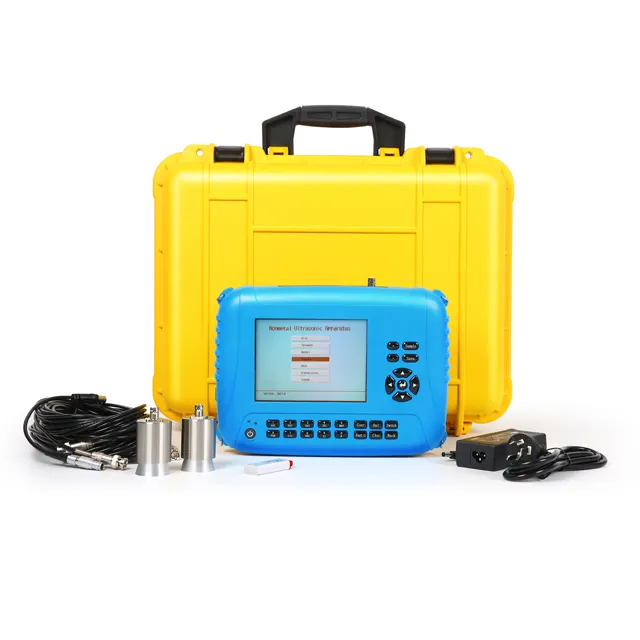

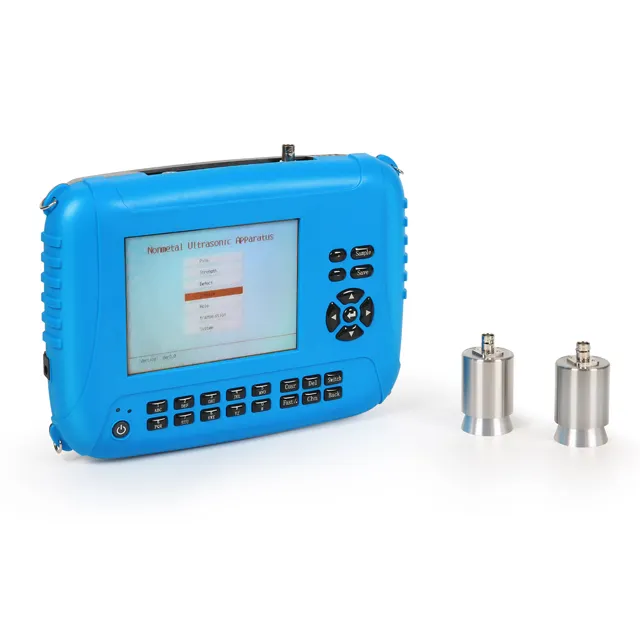

C61 Ultrasonic Testing for Concrete

Features

1)     Fast and precise Automatic judge the sound parameters. Real-time wave display to assure test efficiency.

2)     Humanized software design. software is designed apply to user and construction plant application directly,. the HELP section ensures user friendly-user handling.

3)     Displaying the test data graphically. User can view analyzing result directly.

4)     Linking the rebound apparatus directly. Detecting strength of concrete by ultrasonic-rebound combine method with linking rebound apparatus directly, and get strength of concrete in time.  The function has been applied for national patent.

5)     Being sensitive to receiving signal. Can receive signal more than 10m in concrete without defects.

6)     Can supply smooth power for radial energy transducer needless external power.

7)     Standard USB storage with big capacity.

8)     Interior lithium battery supply power for apparatus work more than 6 hours. More than 12 hours combined with external lithium battery, this can match requirement of long time field testing.

9)     Portable, small, light apparatus (1.75Kg).

10)   Extending function for testing thickness of concrete by impacting echo method.

11)   Professional and powerful analysis software on windows system. It can export the data to Excel or word for advanced analysis.

Technical Data
