MPI For Axle Shaft
MPI For Axle Shaft

MPI For Axle Shaft

Product Tags :
Product Description

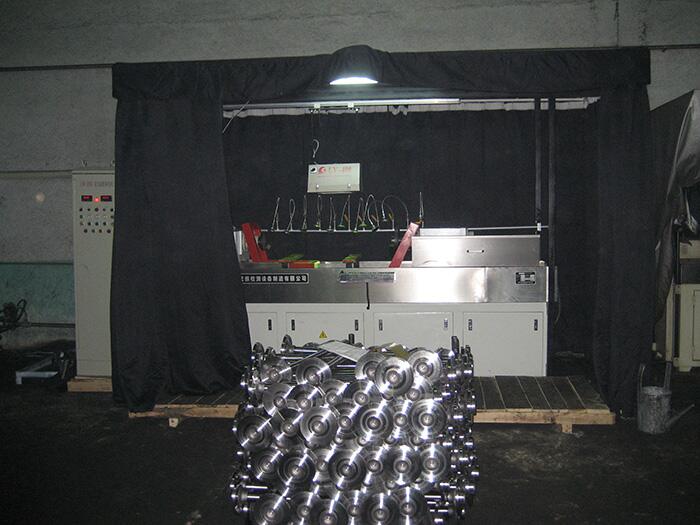

CDW-4000 fluorescent magnetic particle inspection machine is an electromechanical combined semi-automatic magnetic particle inspection equipment. It consists of a power supply control system, a clamping magnetization device, a magnetic suspension system, and other parts. It is suitable for wet magnetic particle detection of ferromagnetic materials. Cracks and various minor defects on the surfaces and near surfaces of shafts, tubes, and rods due to various reasons such as casting, forging, processing, and fatigue.



    This equipment adopts manual and automatic operation modes, and is controlled by the programmable controller (OMRON PLC). When it is manual, it can perform single-step independent operation of each function. When it is automatic, the device automatically executes the PLC internal program. After the workpiece is loaded and clamped in place, press the start button to realize the rotation of the workpiece-spraying-magnetization- A series of actions such as double rotation observation. Release the workpiece after manual demagnetization. Circumferential magnetization uses direct current, and longitudinal magnetization uses two sets of special-shaped coils, which have good magnetization effect. The AC magnetization has power-off phase control, and has good remanence stability. It is suitable for both continuous and flaw detection. The composite magnetization forms a rotating magnetic field on the workpiece and displays the magnetic track in all directions at once, which has a high working efficiency.

Main technical parameters

2.1 Magnetization mode: circumferential, longitudinal and composite magnetization modes;

2.2 Circumferential magnetization current: AC 0-4000A effective value, continuously adjustable;

2.3 Longitudinal magnetization magnetic potential: AC 0-24000AT effective value, continuously adjustable;

2.4 Circumferential demagnetization current: AC 4000-0A effective value, continuously adjustable;

2.5 Longitudinal demagnetization potential: AC 24000-0AT effective value, continuously adjustable;

2.6, electrode spacing: 0-1000mm (electric adjustable);

2.7 Temporary load rate: ≥25%;

2.8 Clamping method: Pneumatic clamping;

2.9 Operation mode: manual / automatic;

2.10. Flaw detection sensitivity: 15 / 50A1 test piece is clearly displayed;

2.11, detection cycle: about 25 seconds / piece (except loading and unloading and observation time, the detection time and process can be adjusted according to the actual needs of the demander, the program can be adjusted);

2.12 Power supply: three-phase four-wire 380V ± 5% 50Hz 150A;

2.13.Darkroom size: 2600mm (L) × 2200mm (W) × 2200mm (H)

Detector size: 2100mm (L) × 750mm (W) × 1500mm (H) (including the height of the spray rack),

2.14. Operating environment: temperature -5 + 40 , relative humidity ≤80%, no corrosive gas, dust and medium and high frequency interference;

2.15. Weight: about 1900Kg.
