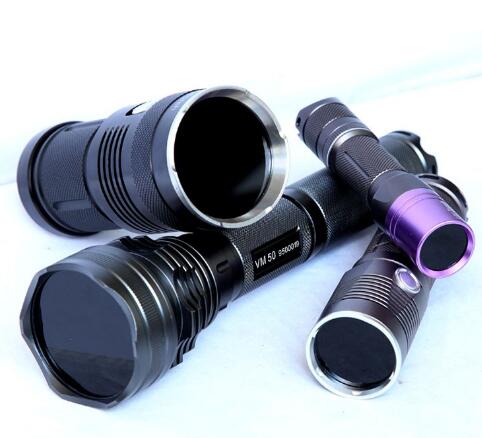

NDT UV Lamps
NDT UV Lamps NDT UV Lamps NDT UV Lamps NDT UV Lamps

NDT UV Lamps

Product ID : UFD210
Product Tags :
Product Description

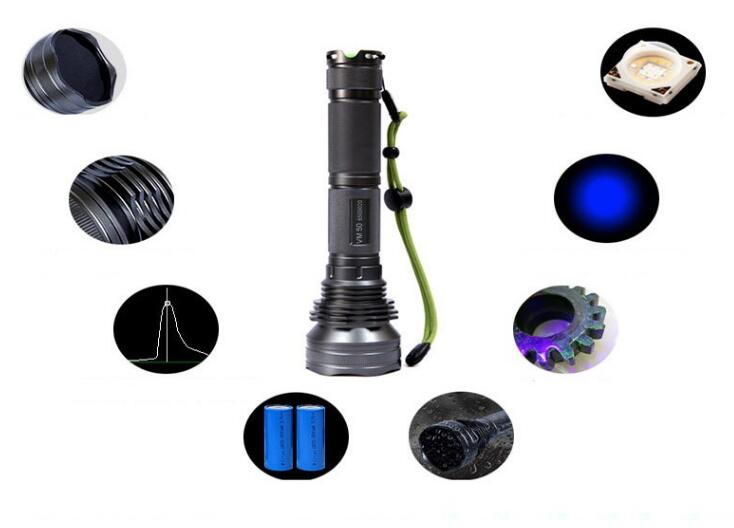

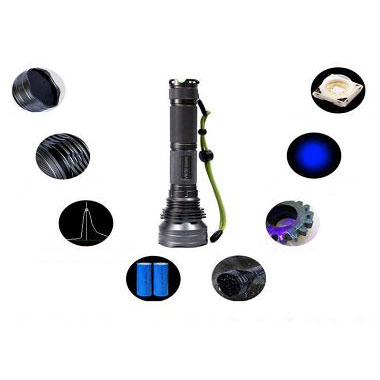

 Features:

1, UV Series adopts high-power 365nm Ultraviolet band LED Lamp Beads produced by Japanese NICHIA company, free from UV-B and UV-C element,spectrum is pure.
2, The lifetime of Lamp Beads reach up to 20000 hours, efficient, energy conservation and environmental protection.
3, High power output, quick start, can reach the maximum illuminance as soon as switched on.

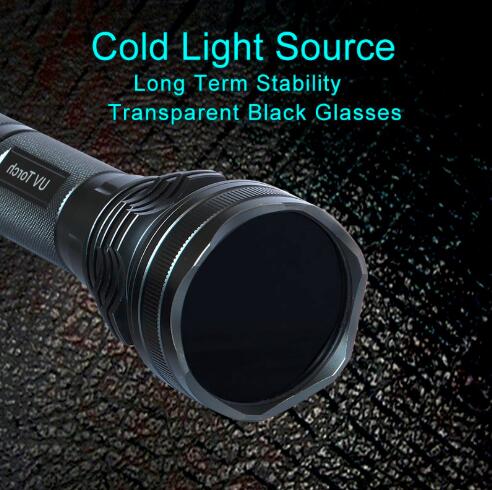

4, Ultra-low power, ultra-high efficiency. Cold operated with cold light source, long term stability output the illuminance.
5, Optical filter is high UV transmittance transparent Quartz optical glass.
6, The shell of the instrument is made of high strength aluminium alloy precision machining. The surface is anodized, sturdy and durable.
7, The enhanced heat dissipation design can be used continuously for a long time.
8, Dedicated high-speed charger is equipped.
9, With anti magnetic interference function,it can be used in high-intensity magnetic field.
10, The product has passed through International Standard of IEC 60529--Housing Protection Grade(IP66) dustproof and waterproof testing, wider working environment and more reliable.



Main parameters

Model

       UV10

      UV30

     UV50

    UV70











Lamp Beads

     NICHIA 365nm Ultraviolet band LED Lamp Beads

Lamp Bead Amount

        1

         1

         1

      3

Input Voltage

   3.7-4.2V

   3.7-4.2V

   3.7-8.4V

   3.7-8.4V

Output Power

       3W

      3W

      3W

     9W

Intensity of Ultraviolet Ray at 38cm Distance

          ≥10000uW/cm2

     ≥13000uW/cm2

≥20000uW/cm2

     ≥20000uW/cm2

Irradiated Area at 38cm Distance

    43mm

   45mm

55mm

80mm

Diameter of Light Inlet Window

     22

    34

55

   50

Battery Model

  ICR 18650

  ICR 26650

 ICR 26650

 ICR 18650

Battery Capacity

  2600mAh

  4800mAh

  4800mAh

  2600mAh

Number of Battery

     1

     1

      2

     4

Charging Time

    ≥5H

    ≥6H

     ≥7H

    ≥5H

Working Hours

    ≥4H

     ≥5H

     ≥7H

    ≥5H

Battery Life

    More than 500 time for fully charge and discharge

Outline Dimension

28 mm×24 mm×128mm

40mm×33 mm×144mm

62 mm×34 mm×240 mm

60mm×50 mm×143mm

Weight(including Battery)

     140g

    240g

    520g

   610g

Standard delivery

Model

Main unit

Battery

Charger

Lamp box

Protection glasses

English Manual

Quality certificate

Warranty card

UV10

  1

  1

  1

  1

  1

  1

  1

  1

UV30

  1

  1

  1

  1

  1

  1

  1

  1

UV50
