Magnetic Flaw Detector
Magnetic Flaw Detector

Magnetic Flaw Detector

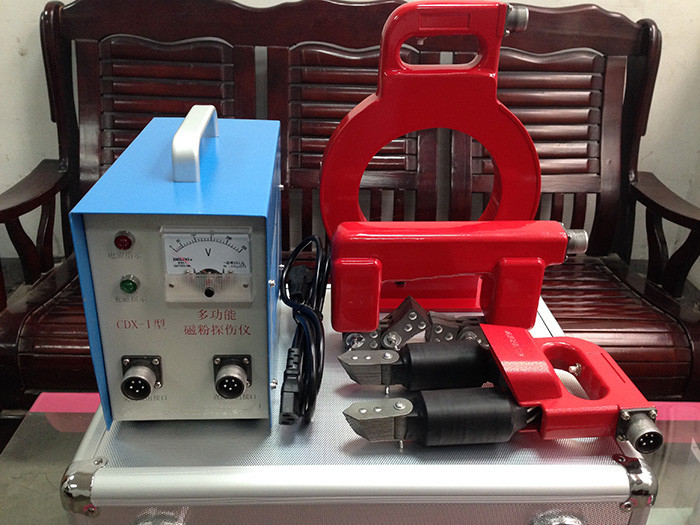

Product ID : CDX-I/II
Product Tags :
Product Description
Usage: For aviation,, space flight, railway, automotive, ship, pressure vessel, mechanical industry etc.
Main specification
CDX-I
CDX-II
CXX-E
CJE-A
CJE-D
Power
220V 50HZ
220V 50HZ
220V 50HZ
220V 50HZ
220V 50HZ
Magnetic type
AC/DC
AC
AC
AC
AC/DC
Probe
AD
ADEO
E
A
D
Total weight
15kg
20kg
10kg
8kg
8kg
Elevating power
Type A, D4.5kg; Type E12kg
Polar distance
Type A: 10-180mm; Type D: 10-210mm; Type E: 10-100mm;
Type O: ID.120mm

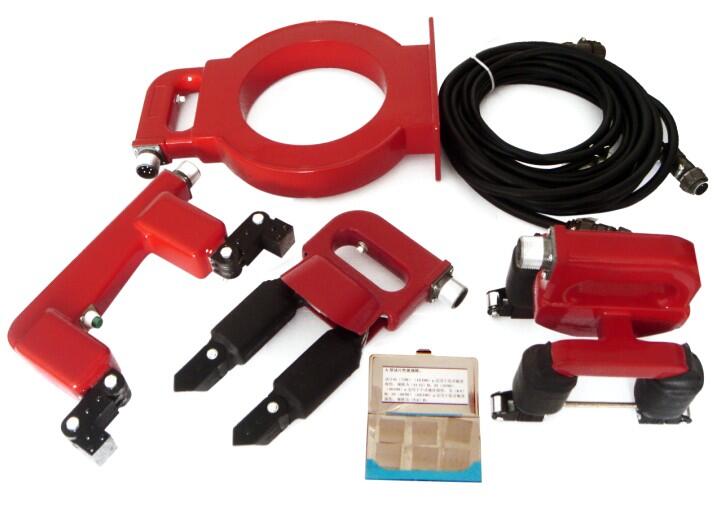

A Probe: It is using to inspect all fillet weld and exterior angle including inside and outside of huge specimen. Polar distance: 20-160; elevating power: AC≥4.
E Porbe: It can meet all of the work piece can be placed in the circumference to crack detection and use it to detect fatigue cracks in the work piece. Meanwhile, demagnetizing specimen also could do it.. Polar distance: 110, elevating power: AC≥12.5
D Probe: It equips live joints, which could inspect specimen of plane sharp and find the defects.Polar distance: 60-220,elevating power: AC≥4.5, DC≥18.
O Probe: Inner diameter: 150, Center magnetic≥180Oe. It can meet all of the work piece can be placed in the circumference to crack detection and use it to detect fatigue cracks in the work piece. Meanwhile, demagnetizing specimen also could do it.
