Product Description
|
Product categories
|
Brand
|
Model
|
Performance description
|
||||||||||||||||||||||
|

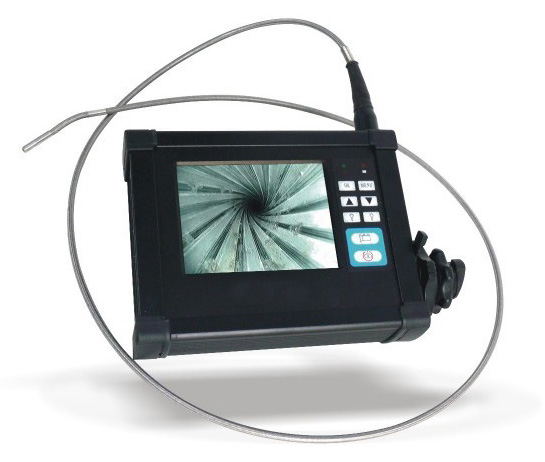

DN series industrial video endoscope
|
Low pixel camera
|
DN601S
|
1.Probe diameter:6mm 2.Effective working length: 1.5 meters or 3 meters
3.Image sensor:1/18' Cmos 4.Effective pixels:180,000
5.Test line's material: S. S. braid 6.Illumination mode: LED cold light
7.Storage relative humidity:30%-90% RH 8.Monitor: 4.3' LCD
9.Lignt intensity:1.5LUX 10.Lamp life: above 10000 hours
11.Power supply: DC12V 1A 12.Resolution: 640*480
13.Image storage format: JPEG 14.Video storage format: AVI
15.Working temperature:-10°C to 50°C
|
||||||||||||||||||||||
|
DN603S
|
|||||||||||||||||||||||||
|
High-definition camera
|
DN601GS
|
Technical Parameters :
1.Probe lens diameter : 6mm 2.Effective working cable length: 1.5m/3m
3.Depth of field : 10 --100 mm/25-∞ 4.Image sensor : 1/10'' CCD
5.Effective pixels : 410,000 6.Waterproof standard : IP67
7.Test line material : S. S. braid 8.Camera direction : 4 -way
9.Illumination mode : LED cold light 10.Lamp life : above 10000 hours
11.Light intensity: 65000lux 12.Power supply : DC12V 1A
13Portable battery: Li-Polymer 12V 3600MAH 14.Monitor: 5.6-inch TFT LCD
15.Resolution: 800*600 16.Image signal output: CVBS
17.Image storage format: JPEG 18.Video storage format : AVI
19.Storage capacity: 8GB (standard), Max up to 32 G
20.Working temperature: -10-50°C 21.Storage relative humidity: 30%-90% RH
|
|||||||||||||||||||||||
|
DN603GS
|
|||||||||||||||||||||||||
|
DN801S
|
Technical Parameters:
1. Probe lens diameter: 8mm 2. Probe length : 25mm
3. Effective working cable length: 1.5m/3m/6m/8m 4. Depth of field : 10 mm --100/25-- infinity
5. Image sensor: 1/6 '' CCD 6. Effective pixels : 440,000
7. Waterproof standard: IP67 8. Test line material: S. S. braid
9. Camera direction: 4 -way 10. Field of view : 90 degrees
11. Illumination mode: LED cold light 12. Lamp life: above 10000 hours
13. Light intensity: 65000lux 14. Power supply : DC12V 1A
15. Portable battery: Li-Polymer 12V 3600MAH 16. Monitor Size: 5.6-inch TFT LCD
17. Resolution: 800*600 18. Image signal output : CVBS
19. Image storage format: JPEG 20. Video storage format : AVI
21. Storage capacity: 8GB (standard), Max up to 32 GB 22. Working temperature: -10 -- 50°C
23. Storage relative humidity: 30%-90% RH
|
||||||||||||||||||||||||
|
DN803S
|
|||||||||||||||||||||||||
|
DN806S
|
|||||||||||||||||||||||||
|
DN808S
|
|||||||||||||||||||||||||
|
DN1010S
|
|
