Product Description
|
Product categories
|
Brand
|
Model
|
Performance description
|
|

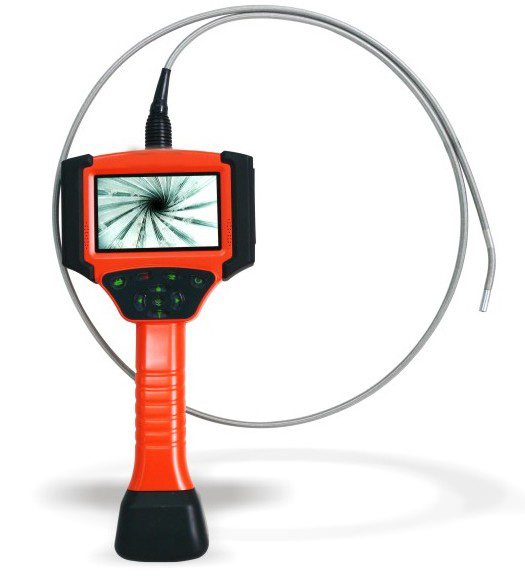

Hand-held Electronic Endoscope |
Industry Flexible Videoscope with 4-way articulation
|
VT601GSF (high definition; testing cable 1.5m) |
Industry Flexible Videoscope with 4-way articulation 3m testing cable 4.3 inches LCD Monitor OEM is available
Industry Flexible Videoscope with 4-way articulation 1.5m/3m testing cable 4.3 inches LCD Monitor Features,
1. Probe diameter: 6mm 2.Camera direction: articulation 4-way
3. Testing cable length:1.5/3 meters 4.Image sensor:1/8”CMOS
5. Effective pixels: 410,000 6. Test line’s material: S.S. braid
7.Lamp life: above 10000 hours 8.Power supply: DC5V 1A
9..Monitor: 4.3-inch TFT LCD 10.Resolution:800*480
11..Image storage format: JPEG 12..Storage capacity: 8GB
|
|
VT603GSF (high definition, testing cable 3m) |
|||
|
Industry Flexible Videoscope with 2-way articulation
|
VT601GST/VT603GST(high definition, 1.5m/3m testing cable)
|
Features,
1. Probe diameter: 6mm 2.Camera direction: articulation 2-way
3. Testing cable length:1.5/3 meters 4.Image sensor:1/8”CMOS
5. Effective pixels:410,000 6. Test line’s material: S.S. braid
7.Lamp life: above 10000 hours 8.Power supply: DC5V 1A
9..Monitor: 4.3-inch TFT LCD 10.Resolution:800*480
11..Image storage format: JPEG 12..Storage capacity: 8GB
|
|
|
VT601ST/VT603ST(common definition, 1.5/3m testing cable)
|
1. Monitor Size: 4.3 inches 2. Sensor ( CCD/CMOS ) size : 1/10 inch
3. Pixels: 380,000 4. Lens diameter : 6mm
5. Probe length: 20mm 6. Depth of field : 10mm -- 100mm
7. Testing cable length : 1.5m/ 3m 8 Tip articulation : 2 - way
9. View scale angle: 80 degress 10. Bending angle : more than 120 degrees
11. SD Card capacity: 8GB ( standard ) 12. Snap and Recod
13. Power supply: high lithium battery 15. Long warranty because of high quality.
16. Warranty: 12 months. 17. Resolution: 800x 640 .
18 Water proof stand: IP67. 19, CE, RoHS is compliant
|
||
|
VT401SAT(common definition, 1.5m testing cable) |
1.Camera direction: articulation 2-way 2.Electrical Control ,one-button reset
3.Probe diameter: 4mm 4.Effective working length: 1.5meters
5.Image sensor:1/18”CMOS 6.Effective pixels:380,000
7.Waterproof: IP67 8.Test line’s material: S.S. Braid
9.Illumination mode: LED cold light 10.Lamp life: above 10000 hours
11.Power supply: DC5V 1A 12.Portable battery: Li-polymer 3.7V 4500MAH
13.Monitor: 4.3-inch TFT LCD 14.Resolution:800*480
15.Image storage format: JPEG 16.Video storage format: DI:25f/s VGA:30f/s
18.Storage capacity: 8GB 19.Working temperature:-10 to 50°C
20.Storage relative humidity:30%-90% RH
|
