Product Description

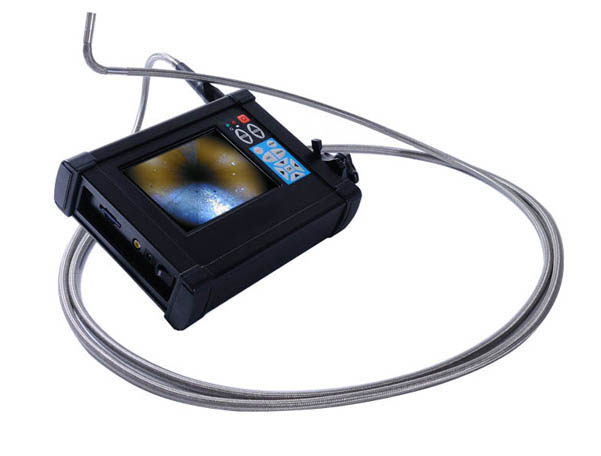

Portable Video Endoscope with 5.6'' LCD 8mm lens 4-way 6m testing cable
Specifications :
1. Net weight is just 2.5 kgs , it's easy to operate in complexed environment .
2. Four way bending & any viewing angle can be exhausive .
3. Intelligent snapping & recording , the detection of data records in time .
4. It can support 32GB SD Card ( max ) , Standard : 8GB .
5. 5.6 '' LCD Monitor can offer smooth real, clear, static and dynamic pictures .
6. It can be used in the environment of narrow curved space & corrosion where human can't reach .
7. ODM/OBM is acceptable .
8. Sample is available .
9. Warranty : 12 months .
Technical Parameters :
1. Probe lens diameter : 8mm
2. Probe length : 25mm
3. Effective testing cable length : 6m
4. Depth of field : 10mm -- infinity .
5. Image sensor : 1/6'' Cmos/CCD
6. Effective pixels : 450,000
7. Waterproof standard : IP67
8. Test line material : S.S.braid
9. Camera direction : 4 -way
10. Field of view : 90 degrees
11. Illumination mode : LED cold light
12. Lamp life : above 10000 hours
13. Light intensity : 65000lux
14. Power supply : DC12V 1A
15. Portable battery : Li-Polymer 12V 3600MAH
16. Monitor Size : 5.6-inch TFT LCD
17. Resolution : 800*480
18. Image signal output : CVBS
19. Image storage format : JPEG
20. Video storage format : AVI
21. Storage capacity : up to 32 GB
22. Working temperature : -10 -- 50°C
23. Storage relative humidity : 30%-90% RH
