Product Description
Main Features:

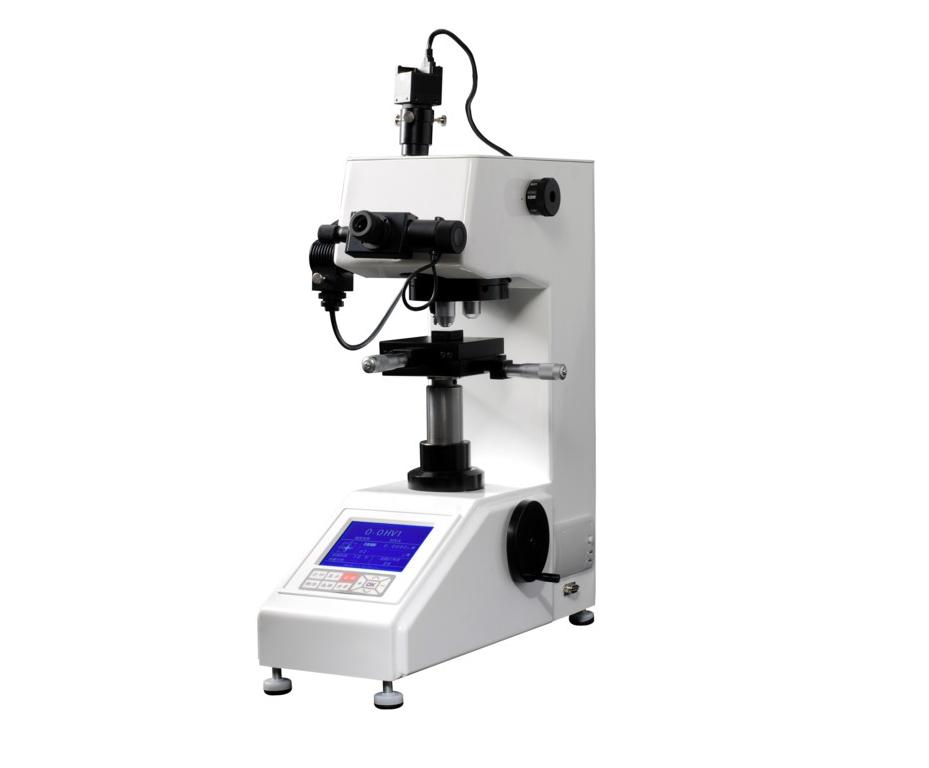

Model THV-1MD Digital Automatic Turret Micro Vickers hardness tester with large screen LCD display, use the menu interface type structure, can be in operation panel choose hardness HV or rod HK, test of hardness value, automatic input, automatic display. For all kinds of hardness value mutual conversion, and the testing result is automatic storage, processing, printing. With RS-232 interface, and computer online. This machine is digital, high degree of automation. Hardness value error can be modified through software input, hardness value more accurate meets the requirement.
THV-1MD Digital Automatic Turret automatic turret Micro hardness tester with digital display when the pressure head and the objective to switch to each other, the test point to be automatic positioning precision.
Usage Range:
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc。
Model THV-1MD Digital Automatic Turret Micro Vickers hardness tester with large screen LCD display, use the menu interface type structure, can be in operation panel choose hardness HV or rod HK, test of hardness value, automatic input, automatic display. For all kinds of hardness value mutual conversion, and the testing result is automatic storage, processing, printing. With RS-232 interface, and computer online. This machine is digital, high degree of automation. Hardness value error can be modified through software input, hardness value more accurate meets the requirement.
THV-1MD Digital Automatic Turret automatic turret Micro hardness tester with digital display when the pressure head and the objective to switch to each other, the test point to be automatic positioning precision.
Usage Range:
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc。
Technical Specifications:
|
Model
|
Model THV-1 Vickers hardness tester
|
|
Test force
|
10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
|
|
Min measuring unit
|
0.031µm
|
|
Data output
|
LCD screen display, Inside Printer, RS-232
|
|
Max Height of Specimen
|
80mm
|
|
Distance of Indenter to outer wall
|
95mm
|
|
Net weight
|
About 25Kg
|
|
X-Y Testing table
|
Dimension: 100*100mm Max mobile：25*25mm
|
|
Power supply
|
AC220V+5%，50-60Hz
|
|
Overall Dimension
|
405*290*480mm
|
|
Conversion Scale
|
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
|
|
Hardness measuring range
|
8~2900HV
|
|
method of testing force applied
|
|
|
Test microscope magnification
|
400X(Measuring)，100X（observation）
|
|
Duration time
|
0~60s
|
Standard Accessories:
|
Item
|
Quantity
|
Item
|
Quantity
|
|
Weight shaft
|
1
|
Weight
|
6
|
|
Cross clamping testing table
|
1
|
Flat clamping testing table
|
1
|
|
Filament clamping testing table
|
1
|
Thin Specimen Testing Table
|
1
|
|
Screw driver
|
2
|
Level adjustment screw components
|
4
|
|
Level bubble
|
1
|
Objective 10X
|
1
|
|
Micro Vickers hardness block (High, Low)
|
Each 1
|
Fuse(2A)
|
2
|
|
Power cable
|
1
|
Product Certificate
|
|
|
Manual
|
1
|
Note:
Special accessories: special accessories according to user needs rationing custom, the price is another plan.
1. Knoop indenter: can measuring some high hardness materials.
2, Provide 16 X micro-distance measuring eyepiece, total magnification for 640 * and * 40.
3, Provide 6.8 inch LCD screen can be equipped with, have tested indentation in the display on the screen and the measurement.
4. Provide equipped with image acquisition device, will impress clearly shown on a computer screen for automatic or manual measurement.
