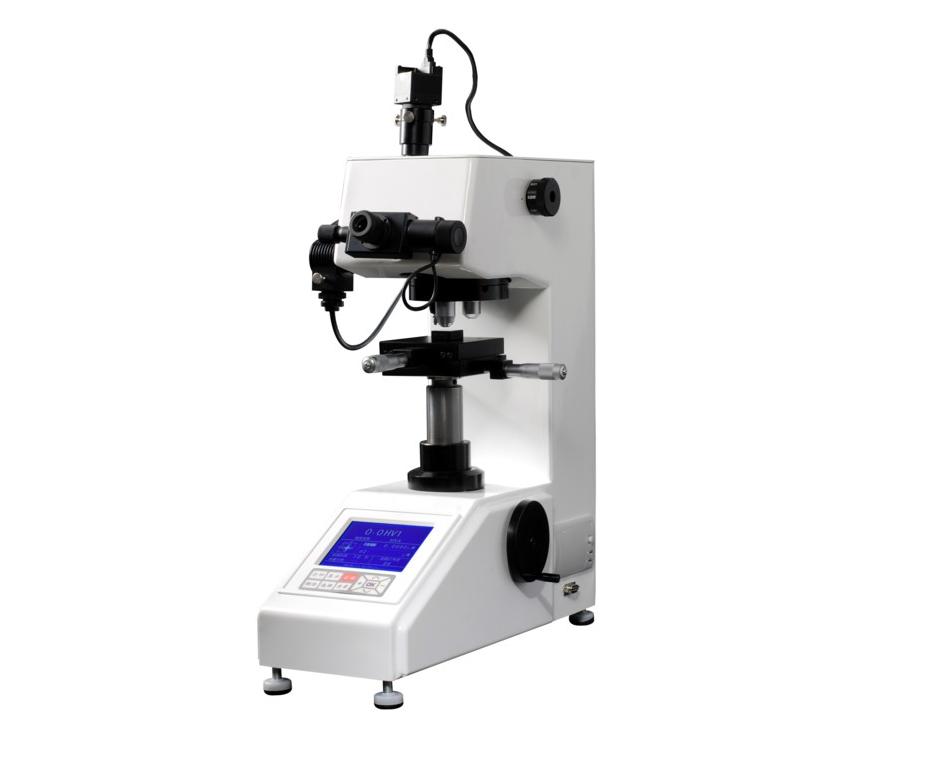

Digital micro Vickers hardness tester
Digital micro Vickers hardness tester

Digital micro Vickers hardness tester

Product ID : THV-1D
Product Tags :
Product Description
Main Features:
Model THV-1D Digital micro Vickers hardness tester with large screen LCD display, use the menu interface type structure, can be in operation panel choose hardness HV or rod HK, test of hardness value, automatic input, automatic display. For all kinds of hardness value mutual conversion, and the testing result is automatic storage, processing, printing. With RS-232 interface, and computer online. This machine is digital, high degree of automation. Hardness value error can be modified through software input, hardness value more accurate meets the requirement.

Usage Range:
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Technical Specifications:
Model
Model THV-1 Vickers hardness tester
Test force
10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
Min measuring unit
0.031µm
Data output
LCD screen display, Inside Printer, RS-232
Max Height of Specimen
80mm
Distance of Indenter to outer wall
95mm
Net weight
About 25Kg
X-Y Testing table
Dimension: 100*100mm Max mobile:25*25mm
Power supply
AC220V+5%,50-60Hz
Overall Dimension
405*290*480mm
Conversion Scale
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Hardness measuring range
8~2900HV
method of testing force applied
Automatic(Loading, Dwell, Unloading)
Test microscope magnification
400X(Measuring),100X(observation)
Duration time
0~60s

Standard Accessories:
Item
Quantity
Item
Quantity
Weight shaft
1
Weight
6
Cross clamping testing table
1
Flat clamping testing table
1
Filament clamping testing table
1
Thin Specimen Testing Table
1
Screw driver
2
Level adjustment screw components
4
Level bubble
1
Objective 10X
1
Micro Vickers hardness block (High, Low)
Each 1
Fuse(2A)
2
Power cable
1
Product Certificate
Manual
1

Note:
Special accessories: special accessories according to user needs rationing custom, the price is another plan.
1. Knoop indenter: can measuring some high hardness materials.
2, Provide 16 X micro-distance measuring eyepiece, total magnification for 640 * and * 40.
3, Provide 6.8 inch LCD screen can be equipped with, have tested indentation in the display on the screen and the measurement.
4. Provide equipped with image acquisition device, will impress clearly shown on a computer screen for automatic or manual measurement.
