Product Description
Application
F71, an intelligentultrasonic velocity in concrete. crack depth and width detector, using a new generation ARM high-speed processing platform. It not only can detect the width and depth in different material (such as concrete), also can detect
Features
1, Large color LCD screen 5", Resolution: 640*480
2, Automatic interpretation
3, Variety of interpretation methods
4, Max detect depth: 650mm
5, Special scale, Portable and practical, improve the test efficiency
6, Convenient data transmission, connect with computer, transmit pictures and data
7, Analyze test data of the software
Technical Parameter
1, Measuring range of width: 0-8mm
2, Accuracy: 0.01
3, Large capacity of storage: 100,000 group detect picture or data
4, Measuring range of depth: ≤650 mm
5, Tolerance of detecting depth: ≤10％
6, Tolerance of detecting width: 0.01mm
7, Test data storage: 6000 group testing data
8, Built-in rechargeable lithium battery, can work 8 hours continuously
9, Work temperature: 10℃～+50℃
10, Weight: 960g

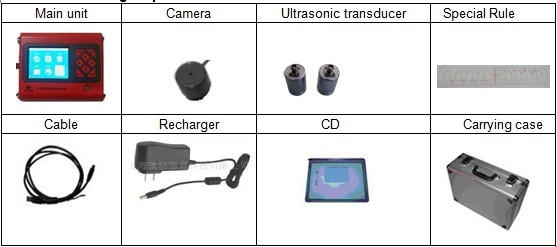

Standard Packing list
