NDT Film Viewer

NDT Film Viewer

ITEM


CHARACTERISTIC

Strong LED Industrial X-Ray Film Viewers

FV-2008

◆ Luminance: ≥205,000Cd/m² (643,700Lux),

◆  Uniformity: 0.9, Diffusion factor:0.95

◆ Viewer window: 220×80mm (8.66" ×3.15")

◆  Maximum Density: ≥4.3 H/D

◆  Unlimited Dimmer for LED

◆  Imported LED chip with original packing

◆  Life span up to more than 50,000 hours

◆  Rugged aluminum frame

Super Bright Industrial LED Film Viewers FV- 2008 PLUS

◆ Luminance : 300,000Cd/m² (942,000Lux)

◆  Uniformity: 0.95, Diffusion factor:0.95

◆ Viewer window: 220×65mm (8.66" ×2.56")

◆  Maximum Density: ≥4.5 H/D

◆  Imported LED chip with original packing

◆  Electronic Light mask - World First

◆  Low noise: Fan with temperature depended

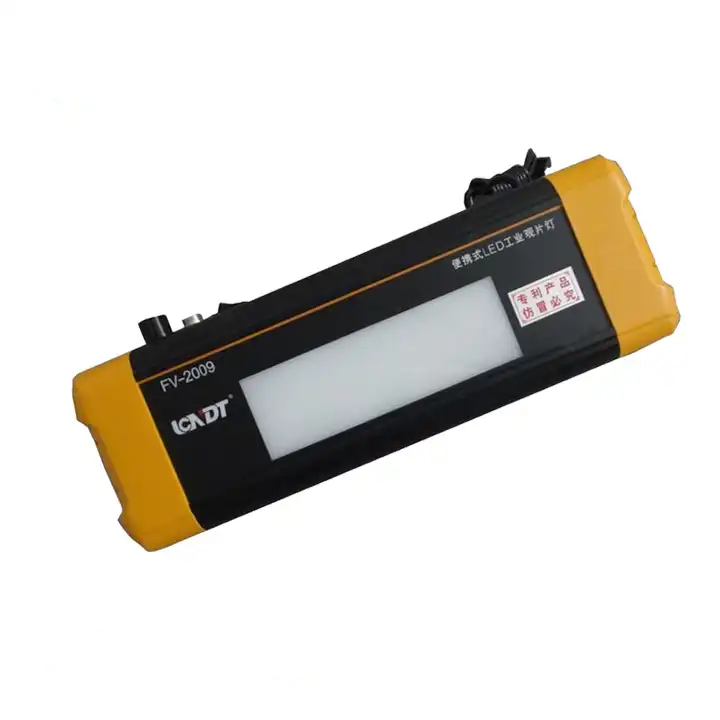

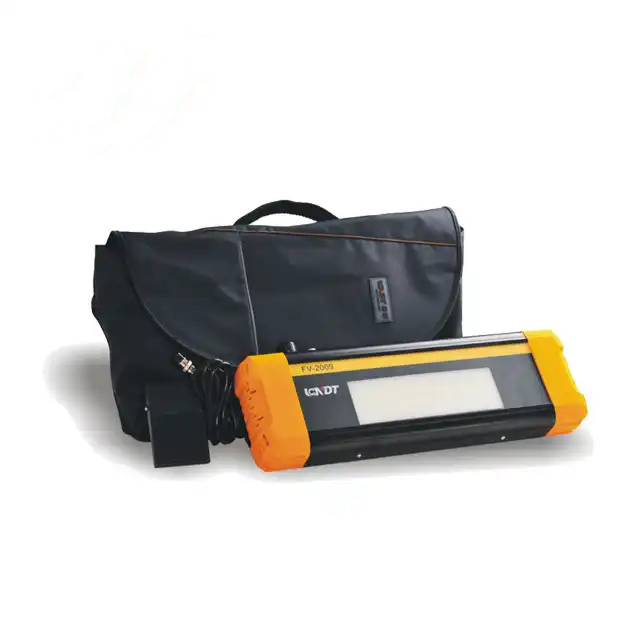

Portable LED Industrial X-Ray Film Viewers

FV-2009

◆ Luminance: 103,000Cd/m² (323,420Lux)

◆  Uniformity: 0.95, Diffusion factor: 0.95

◆ Viewer window: 200×60mm (7.87" ×2.36")

◆  Maximum Density: ≥4.0 H/D

◆  Weight less than 2.5 Kg

◆  12 hours continues maximum luminance, Surface temperature rise≤15℃

◆  Unlimited dimmer from 5%-100%

◆  Rugged aluminum frame, engineering plastic

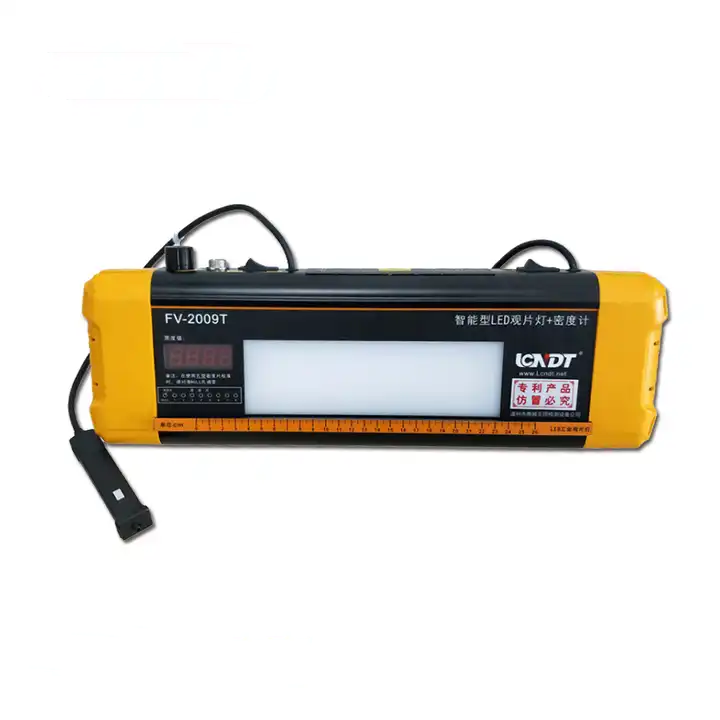

Intelligent LED Film Viewer + Densitometer FV-2009T

◆  Portable LED film viewer combine with Densitometer

◆  High Luminance: ≥120,000 Cd/m²

◆  Uniformity: 0.95, Diffusion factor: 0.95

◆ Viewer window: 200×60mm (7.87" ×2.36")

◆  Maximum Density: ≥4.1 H/D

◆  High Accuracy: ±0.02D

◆  Max. Density(Densitometer): ≥5.0 H/D

◆  Program Mode for customer calibration(patent technology)

◆  Separated design, easy for maintaince

◆  Rugged design. whole alloy aluminium

Large Screen LED Industrial X-

Ray Film Viewers

FV-2010 Plus

◆ Max. Luminance: ≥130,000Cd/m² (408,200Lux)

◆  Uniformity: 0.95, Diffusion factor: 0.95

◆ Large viewer window: 400×100mm (15.75" ×3.94"), 400× 85mm(15.75" ×3.35") are available

◆  Maximum Density: ≥4.2 H/D

◆  Electronic Light mask - World First

◆  Low noise: Fan with temperature depended

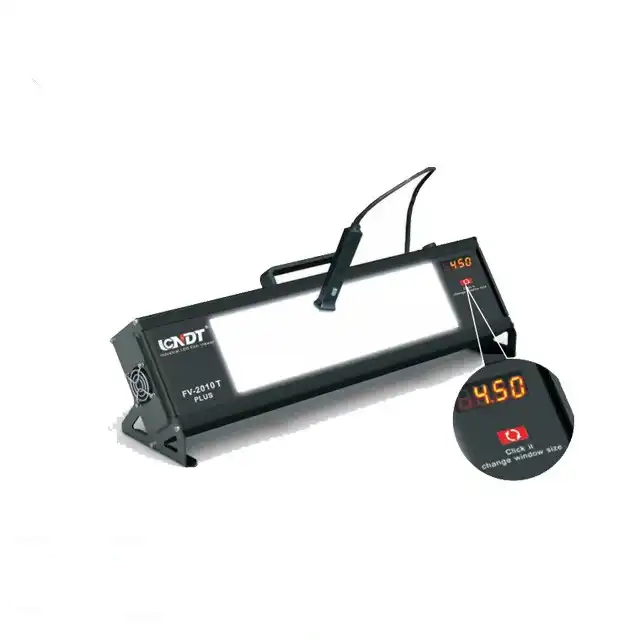

Portable 4.5x17" screen LED Film Viewers + Densitometer

FV-2010T PLUS
