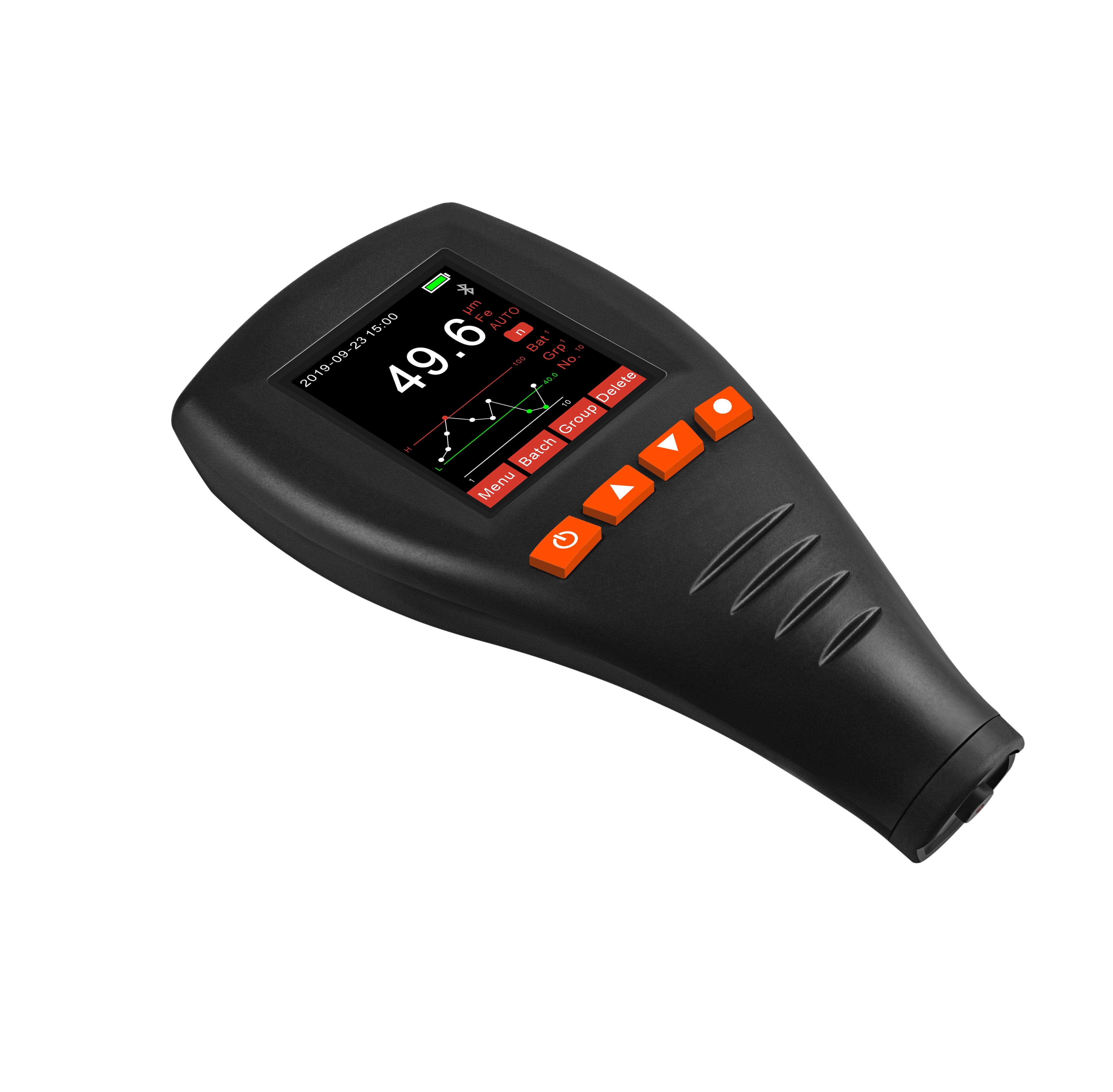

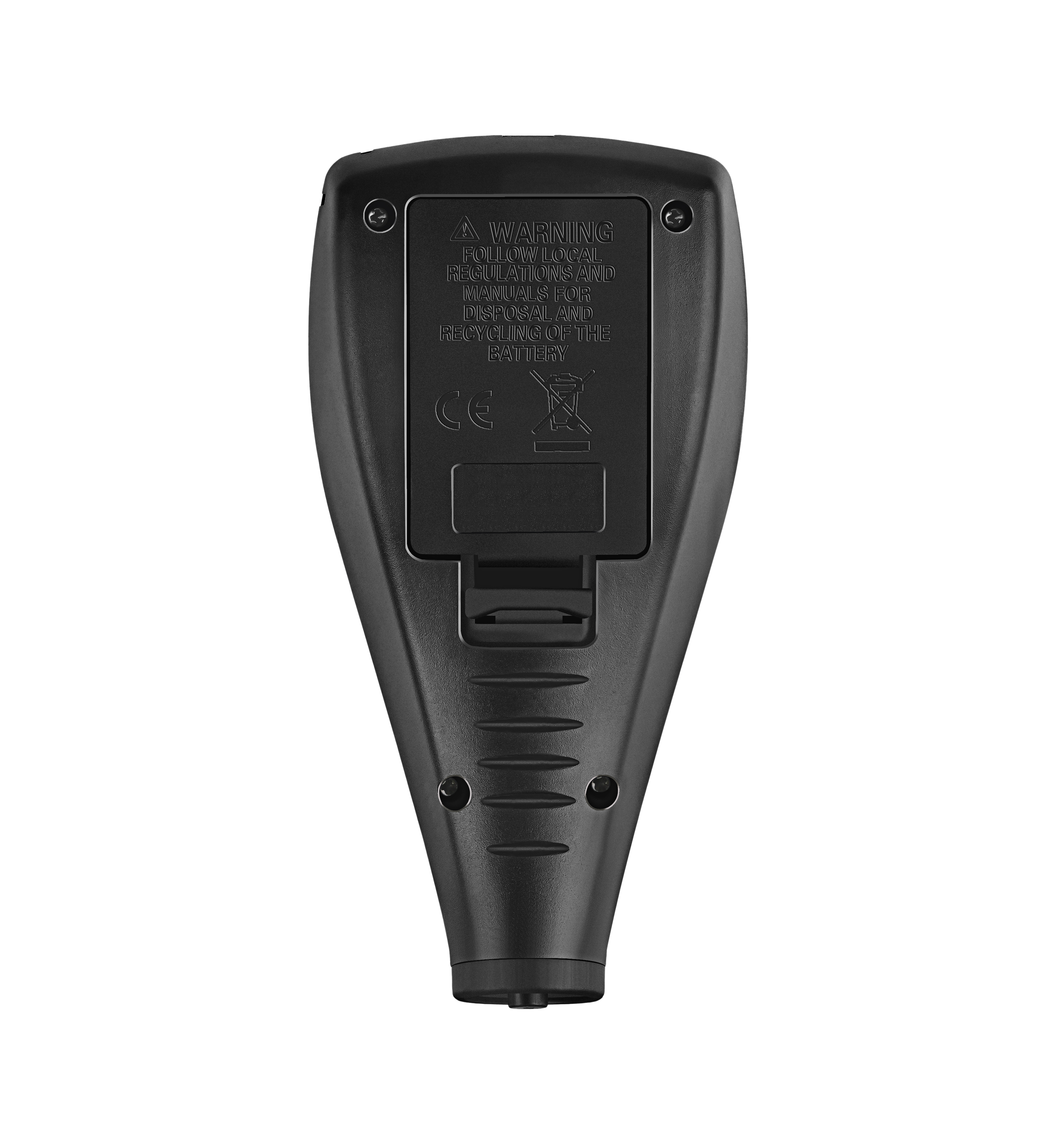

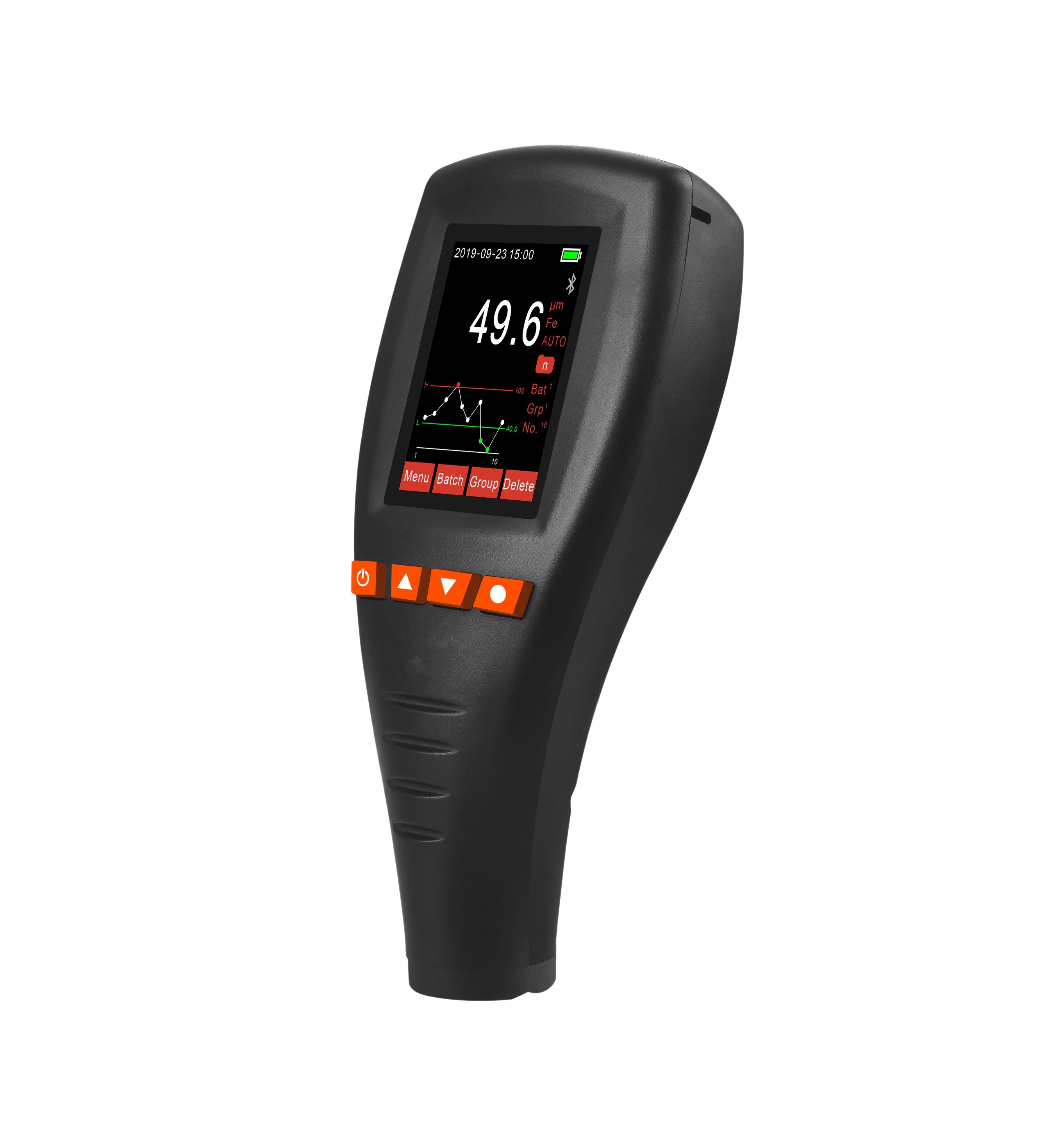

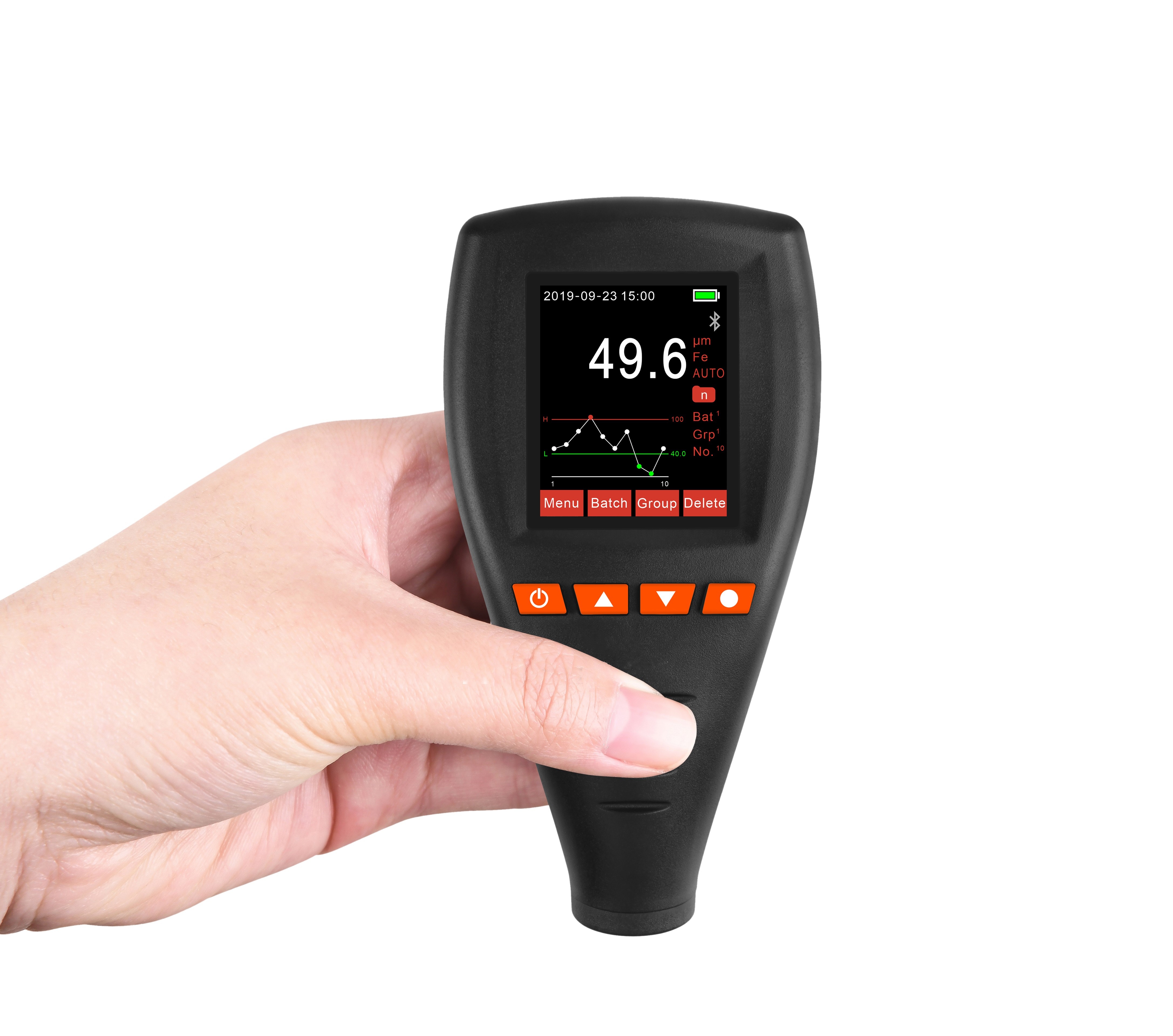

Coating Thickness Gauge
• ruby probe
• 2 inch colour screen
• With Bluetooth and mobile APP function
• Car or general mode
• Resolution is up to 0.1μm
• accuracy of ±(2%+1μm) (EC-555S/SE)
• Measurement range is 0~2000μm
• Statistical analysis of data
• Standardized menu interface
• Display a curve, bar chart or trend chart
• Record data and transfer to PC
• Support zero calibration and multi-point calibration
• External probe optional (DT-555SE)
• Max measurement speed, 2 times/s
• Auto rotation
• Backlight adjustable
• Volume adjustable
• Auto shut-down
• Low battery protection
FEATURES:
• ruby probe
• 2 inch colour screen
• With Bluetooth and mobile APP function
• Car or general mode
• Resolution is up to 0.1μm
• accuracy of ±(2%+1μm) (EC-555S/SE)
• Measurement range is 0~2000μm
• Statistical analysis of data
• Standardized menu interface
• Display a curve, bar chart or trend chart
• Record data and transfer to PC
• Support zero calibration and multi-point calibration
• External probe optional (DT-555SE)
• Max measurement speed, 2 times/s
• Auto rotation
• Backlight adjustable
• Volume adjustable
• Auto shut-down
• Low battery protection
|
Model |
EC-555 |
EC-555S |
EC-555SE |
|
Probe Type |
Internal probe |
External probe |
|
|
Measuring Principle |
Fe: Magnetic induction; NFe: Eddy currents |
||
|
Measuring Range |
0~2000μm |
||
|
Accuracy |
±(2%+1μm) |
||
|
Resolution |
0.1μm(0~100μm); 1μm(>100μm) |
||
|
Unit |
μm, mm, mil, inch |
||
|
Calibration |
Zero calibration; Multi-point calibration |
||
|
Statistic |
Number of data, maximum, minimum, mean, sample standard deviation, coefficient of variation, number below limit, number above limit |
||
|
Chart |
Curve, bar chart or trend chart |
||
|
Storage |
10*13*10 measurement data |
||
|
Probe Trigger Force |
0.4~0.8N |
||
|
Minimum Curvature Radius |
Convex 5mm Concave 25mm |
||
|
Minimum Measuring Area |
Diameter 15mm |
||
|
Minimum Thickness of Substrate |
Fe: 0.30mm NFe: 0.05mm |
Fe: 0.20mm NFe: 0.03mm |
|
|
Maximum Measuring Rate |
2 readings/s |
||
|
Display |
2 inch colour screen |
||
|
Bluetooth & APP |
Support |
||
|
Operation Environment |
| ||
