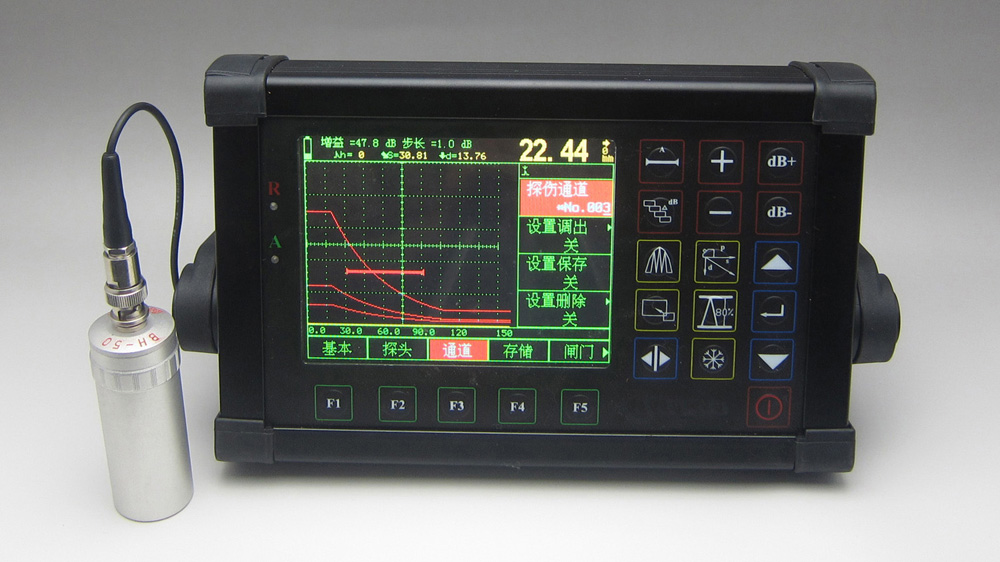

Performance Features
1.Automated calibration of transducer Zero Offset and/or Velocity ；
2.Automated gain、Peak Hold and Peak Memory；
3.Automated display precise flaw location(Depth d、level p、distance s、amplitude、sz dB、ф)；
4.Automated switch three staff gauge ((Depth d、level p、distance s)；
5.100 independence setup, any criterion can be input freely, we can work in the scene without test block；
6.Big memory of 300 A graph.
7.Gate and DAC alarm；Acoustic-Optical alarm;
8.RS232/USB port，communication with pc is easy；
9.The embeded software can be online updated；
10.Li battery, continue working time up to 10 hours;
11.Display freeze;
12.Automated echo degree;
13.Angles and K-value;
14.Lock and unlock function of system parameters;
15.Dormancy and screen savers;
16.Electronic clock calendar ;
17.Two gates setting and alarm indication;
18.High-speed capture and very low noise;
19.DAC、AVG、B Scan ; Solid metal housing ;
20Automated calculate the size of the flaw with w ide bottom type in AVG function.
21.AWS D1.1；
22.6dB DAC functions;
23.Automated make video of test process and play;
24.Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to
read from all angles;
25.Powerful pc software and reports can be export to excel;
Measuring Range and Measuring Error
Range of scanning: 0 mm ~10000 mm
Resolution for scanning: 0.1mm (2.5mm ~100mm)
1mm (100 mm ~5000mm)
Range of gain: 0dB ~110 dB
D-Delay: -20μs～+3400μs
P-Delay: 0μs～99.99μs
Sound speed : 1000 m/s～15000m/s
Operation Environment
Temperature: -10℃~50℃
Humidity: 20%～90%RH
Free of strong magnetic field and corrosion.
Power supply
Li battery 7.4V 4800mAh
Overall Dimension and Weight
Overall dimension: 240mm×150mm×50mm
Weight: 1.6kg
Technical Parameters
|
Designation |
Technical Data |
|
Range of scanning (mm) |
Range of scanning (mm)：0～10000 |
|
D-delay (ms) |
D-delay (ms)：-20～+3400 |
|
P-delay (ms) |
P-delay：0.0～99.99 |
|
MTLVEL（m/s） |
MTLVEL：1000～15000 |
|
Working mode |
Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe) |
|
Frequency Range (MHz) |
0.5~20 |
|
Gain adjustment (dB) |
0～120 |
|
Reject |
0%～80% of screen height, step: 1% |
|
Vertical linear error |
Vertical linear error is not more than 3% |
|
Horizontal linear error |
Not more than 0.2% in the scanning range |
|
Sensitivity Leavings |
≥62 dB |
|
Dynamic range |
≥34dB |
|
Alarm |
Three modes, i.e. forbidden wave, loss wave and auto |
|
A-Scan display area |
Full screen or local |
|
Data save |
300 A-Scan images (including setting of instrument) |
|
Standard communication interface with PC |
RS232/USB |
|
Measuring unit |
mm/inch |
|
Battery |
Li battery 7.4V 4800mAh |
|
Power adaptor |
Input 100V～240V/50Hz～60Hz |
|
Working temperature |
-10℃～50℃ |
|
Working humidity |
20%～90% |
|
Port type |
BNC / LEMO |
|
Overall dimension (mm) |
240×150×50 |
|
Weight (kg) |
1.7 |
Standard Configuration
|
Main unit |
1 |
|
1.5A/9V power adaptor |
1 |
|
probe connecting cable |
2 |
|
Carrying case |
1 |
|
Instruction manual |
1 |
|
Straight probe |
10mm 4MHz (One) |
|
Angle probe |
8×9 60°4MHz (One) |
|
Serial cable |
1 (9 pin) |
|
Communication software for PC |
1 set |
