1. Rugged and modular design
2. Palm sized for narrow space
3. High accuracy
4. Built-in impact device
5. For all metallicmaterials
6. Wide measuring range: Rockwell B&C, Brinell, Vickers, Shore and HL
7. Test in any directions
8. Automatic power on/off
9. Recalibration allowed
10. Comply to standard ASTM A956
|
Model |

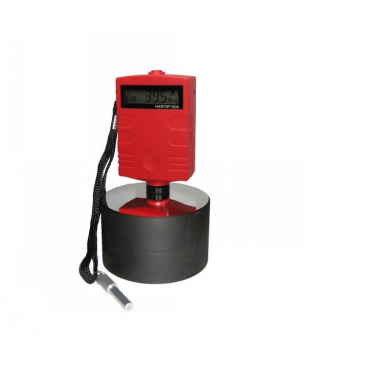

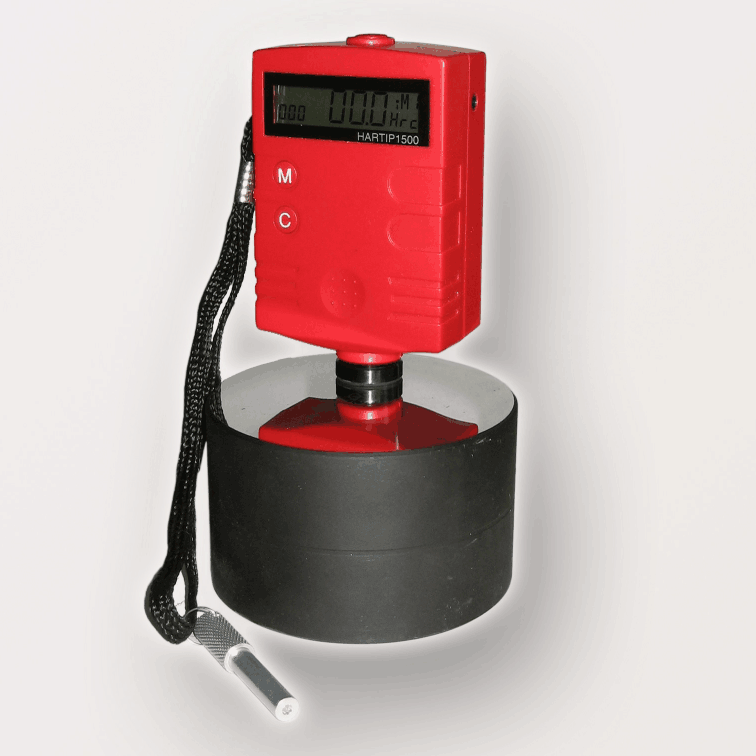

HARTIP 1500 |
|
Principle |
Leeb hardness measurement |
|
Accuracy |
+/-0.6%@HL=800(+/-HRC0.2) |
|
Display |
LCD with backlight |
|
Hardness scale |
HL/HRC/HRB/HB/HV/HS |
|
Measruing range |
HL200-960 / HRC19-68 / HRB13-101.7 / HB20-655 / HV80-940 / HS32-99.5 |
|
Impact device |
D (Internal) |
|
Materials |
9 common metal materials |
|
Memory |
99 data |
|
Statistics function |
Average / Max. / Min. / value |
|
Recalibration |
Allowed by user |
|
Indicator |
Low battery |
|
Power off |
Auto |
|
Power supply |
Ni-MH 9v rechargeable battery |
|
Working environment |
-10~+45°C |
|
Dimension (mm) |
100x60x33 |
|
Net weight (g) |
150 |
