Product Description
Application

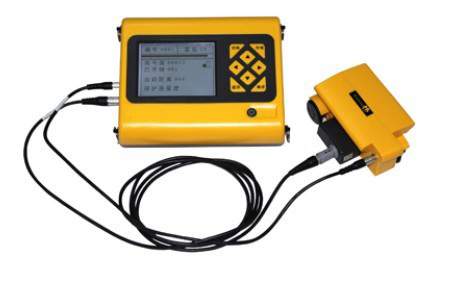

R51 rebar locator used to test steel-bar diameter, Distribution, backing thickness for concrete.
Feature
1, Longer service life of the connector clip. The instrument has long service life because of using lemo connector clip which comes form Switzerland and use for aircraft industry.
2, Good quality of signal cable. The signal cable has long service life because of its flexible and substance.
3, High precision and stability. The instrument can locate the steel-bar accurately and quickly.
4, Longer service life of the sensor. Improve the service life by paste abrasion resistance allowance on the bottom of the sensor.
5, Single sensor. No-change sensor in test. it can assure the precision of test data and the test depth that switching between high and low test range.
6, Display test information real-time. Interpret and display the test data Intelligently to avoid man-made errors.
7, Powerful data process and analysis software in windows. Test data can be export to word or Excel easily.
Technical Data
|
Applicable steel-bar diameter
|
Ф6 mm～Ф50 mm
|
||
|
Tested range of concrete backing thickness
|
Low range: 6 mm～90 mm；High range: 7 mm～190 mm
|
||
|
permissible error
|
|
Low range
|
High range
|
|
±1
|
6～59
|
7～79
|
|
|
±2
|
60～69
|
80～119
|
|
|
±4
|
70～90
|
120～190
|
|
|
Tested range of steel-bar diameter
|
Ф6 mm～Ф50 mm
|
||
|
Permissible error of steel-bar diameter test
|
±1 grade
|
||
|
Applicable environmental
|
Temperature: -10℃～＋40℃; Dampness: <90%RH
EMI: no Strong electromagnetic field
|
||
|
Power supply
|
6 dry cells, work more than 30 times
|
||
|
Power supply
|
6 dry cells, work more than 30 times
|
||
