Radiation Area Monitor
Radiation Area Monitor

Radiation Area Monitor

Product ID : NT6103
Product Tags :
Product Description

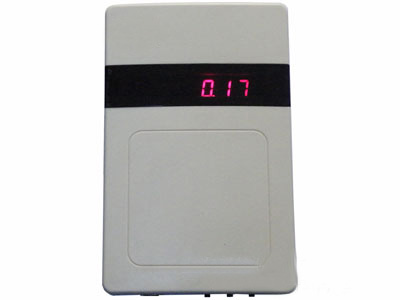

NT6103 Radiation Area Monitor is economical multi-ray detection equipment with inbuilt high sensitive radiation detector. It adopts high speed of microprocessor, LED display and super threshold sound and light alarm function. The instrument can be fixed in a radioactive area, also can move to a temporary monitoring area according to the need as mobile radiation detector. It can be applied to environmental laboratory, radiation chamber, nuclearmedicine, molecular biology, radiochemical, nuclear material storage, etc. for γ and X ray radiation dose rate detection.
NT6103 model is inbuilt detector
NT6103A model is External detector. The maximum distance can be 1000m between the detector and the host.
(1)   Efficient GM tube detector
(2)   Sound frequency indicates the radioactivity
(3)   Excess threshold dose rate alarm
(4)   Low power consumption design
(5)   LED display
(6)   Display Unit: μSv/h,mR/h
(7)   Excess threshold alarm
(8)   Alarm threshold value can be set according to the need
(9)   Jam alarm
(10) Detector failure indicator
(11) Wall hung design
Technical Specification
(1)   Measurement range: 0.01~5000 uSv/h,0.01~500mR/h
(2)   Detector: thin wall type GM counter
(3)   Energy response: 40KeV~3MeV
(4)   Sensitivity: ≥3000CPM/mR/h
(5)   Relative error: ≤15%
(6)   Power: DC 7V~24V(standard 12 V switching power supply)
(7)   Temperature: -10℃~50℃
(9)   Dimension: 160×110×35mm
(10) Weight: 500g
