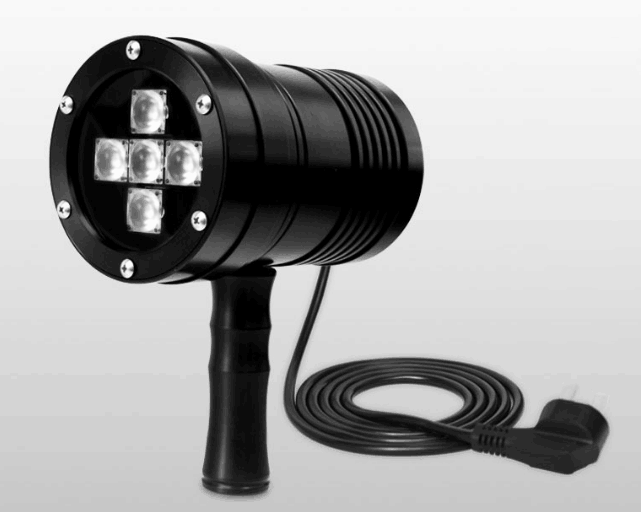

NDT UV Lamps
NDT UV Lamps NDT UV Lamps

NDT UV Lamps

Product Tags :
Product Description

 Features

1, UV Series adopts high-power 365nm Ultraviolet band LED Lamp Beads produced by Japanese NICHIA company, free from UV-B and UV-C element,spectrum is pure.
2, The lifetime of Lamp beads reach up to 20000 hours, efficient, energy conservation and environmental protection.
3, High power output, quick start, can reach the maximum illuminance as soon as switched on.
4, Ultra-low power, ultra-high efficiency. Cold operated with cold light source, long term stability output the illuminance.
5, Optical filter is high UV transmittance transparent Quartz optical glass.
6, The shell of the instrument is made of high strength aluminium alloy 6061-T6 precision machining. The surface is anodized, sturdy and durable.
7, The built-in efficient cooling fin and low noise high speed fan dissipate the heat through aluminium alloy shell integrally.
8, Dedicated high-speed charger is equipped.
9, With anti magnetic interference function,it can be used in high-intensity magnetic field.

10, Both switches and charging port are at back of the device to avoid mis-operation.
11, The product has passed through International Standard of IEC 60529 --Housing Protection Grade(IP66)--dustproof and waterproof testing, wider working environment and more reliable.

Model

       UV100

     UV100D







Power Supply

    AC

  AC or battery

Lamp Beads

NICHIA 365nm Ultraviolet band LED Lamp Beads

Lamp Bead Amount

      5

     4

Input Voltage

100-240VAC

Output Power

    15W

    12W

Intensity of Ultraviolet Ray at 38cm Distance

≥16000uW/cm2

≥10000uW/cm2

Irradiated Area at 38cm Distance

200mm

Diameter of Light Inlet Window

88

Battery Model

ICR 18650-2600mh 3.7V

Number of battery

2*4pcs

Charging time

≥4 hours

Working time

≥7 hours

Battery life

More than 500 time for fully charge and dischrge

Outline Dimension

123 mm×190 mm×120 mm

Weight(including Battery)

    1290g

  1560g





Standard delivery

Model

Main unit

Power line

Adapter

Portable pack

Protection glasses

English Manual

Quality certificate

Warranty card

UV100

  1

  1



  1

  1

  1

  1

  1

UV100D

  1



  1

  1

  1

  1

  1

  1
