Product Description
Main Features:

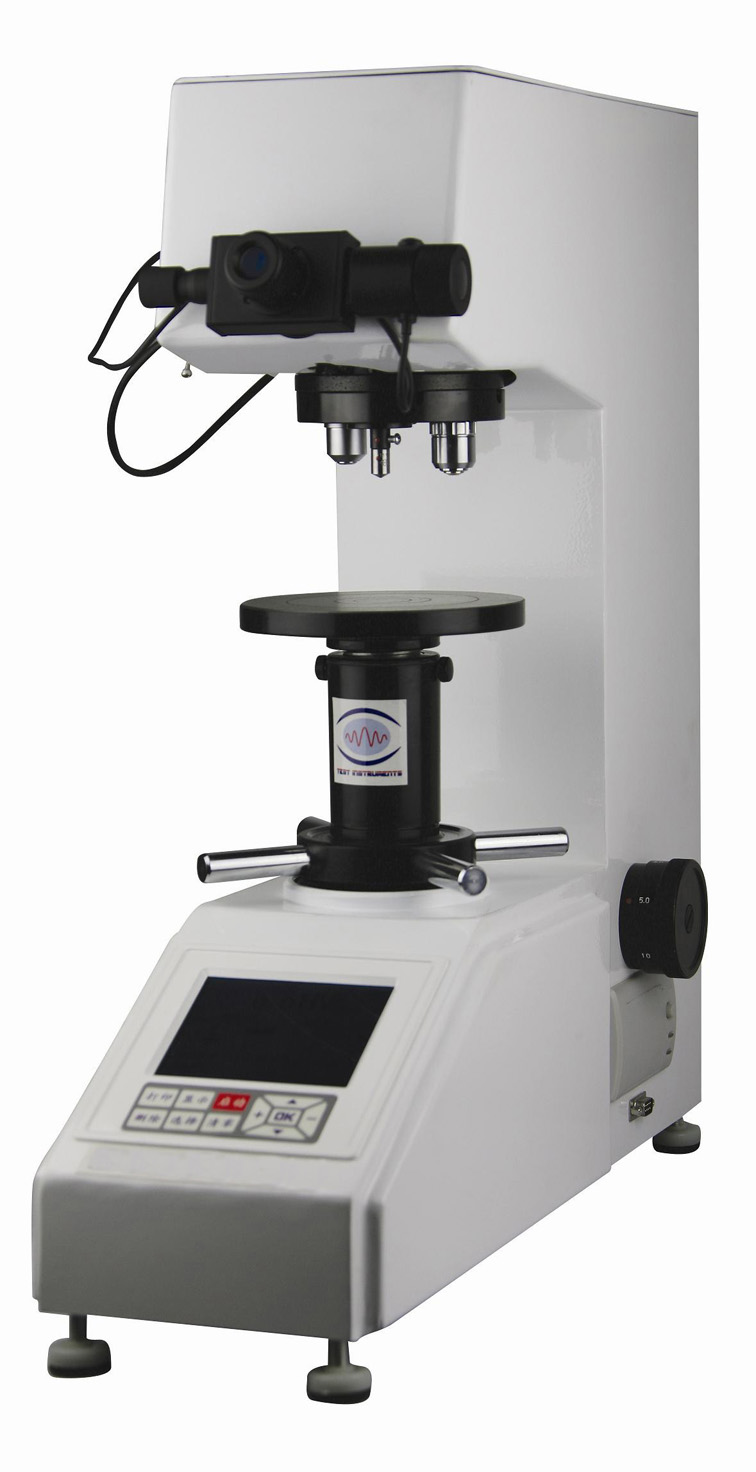

Model THV-5D Digital Vickers hardness tester with large screen LCD display, use the menu interface type structure, can be in operation panel choose hardness HV or rod HK, measurement of hardness value, automatic input, automatic display hardness value. For all kinds of hardness value mutual conversion, test results but automatic storage, processing, printing. With RS-232 interface, and computer online. This machine is digital, high degree of automation. Hardness value error can be modified through software input, hardness value more accurately meets the requirement.
Usage Range:
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Model THV-5D Digital Vickers hardness tester with large screen LCD display, use the menu interface type structure, can be in operation panel choose hardness HV or rod HK, measurement of hardness value, automatic input, automatic display hardness value. For all kinds of hardness value mutual conversion, test results but automatic storage, processing, printing. With RS-232 interface, and computer online. This machine is digital, high degree of automation. Hardness value error can be modified through software input, hardness value more accurately meets the requirement.
Usage Range:
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Technical Specifications:
|
Model
|
THV-5D
|
|
Min measuring unit
|
0.0625µm
|
|
Test force
|
0.3Kgf(2.94N)、0.5Kgf(4.9N)、1.0Kgf(9.8N)、2.0Kgf(19.6N)、3.0Kgf(29.4N)、5Kgf(49.0N)
|
|
Max Height of Specimen
|
160mm
|
|
Distance of Indenter to outer wall
|
135mm
|
|
Net weight
|
About 40Kg
|
|
Power supply
|
AC220V+5%，50-60Hz
|
|
Net weight
|
About 25Kg
|
|
Overall Dimension
|
520*190*650mm
|
|
Hardness measuring range
|
8~2900HV
|
|
method of testing force applied
|
Automatic loading, unloading testing force
|
|
Test microscope magnification
|
200X(Measuring)，100X（observation）
|
|
Duration time
|
0~60s
|
Standard Accessories:
|
Item
|
Quantity
|
Item
|
Quantity
|
|
Weight
|
3
|
Vickers hardness block
|
2
|
|
“V” shaped Testing Table
|
1
|
Fuse(2A)
|
2
|
|
Circular testing table
|
1
|
Power cable
|
1
|
|
Large Testing Table
|
1
|
Product Certificate
|
1
|
|
Objective 10X
|
1
|
Printer manual, Manual
|
Each 1
|
