X-Ray Film Viewer
X-Ray Film Viewer

X-Ray Film Viewer

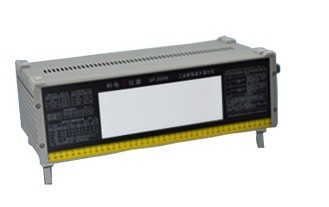

Product ID : FV-2000A
Product Tags :
Product Description
FV-2000A adopts super-powerful LED as light source, which can clearly observe slight defect on density strip. Films are not happen crimp after working 12 hours continuously because of unique cooling system, no matter in foot switch mode or manual mode.
Constant current driving mode, it prolong the service lift and ensures the normal work of LED in greatest extent. Unlimited dimmer provides a safe work environment.
1, Window View: 220mm x80mm
2, Brightness: 125,000cd/m2 (388000Lux)
3, Observe film density: above 5.0
4, Average CCT: 7000K
5, Power consumption: 120W
6, Power: 47-63Hz/170-230VAC
7, Magnifier: Two times
8, Dimension: 430×220×130mm
Standard Packing Listing
1, Mainframe 1pc
2, Foot-switch 1pc
3, Shadow shield 2pcs
4, Straight shank Magnifier 1pc
5, Backup fuses 2pcs
6, Manual instruction
