Product Description
Main Features:

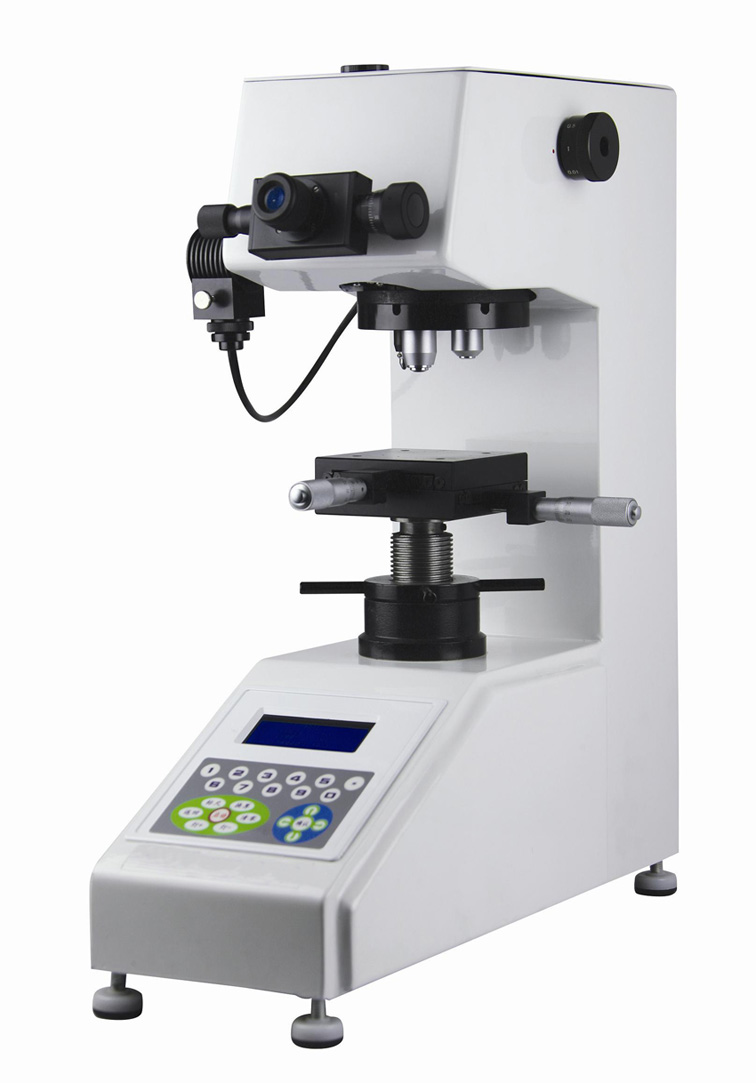

Model THV-5 Vickers hardness tester is micro hardness of basic plan, the aircraft used LCD display screen, through the operation panel of hardness or HK each file ruler HV benchmark test time by choice, the lighting source can do promise regulation. Operation can be measured D1 eyepiece, D2 value after the direct input, hardness value in LCD display screen is directly on display.
Model THV-5 Vickers hardness tester is micro hardness of basic plan, the aircraft used LCD display screen, through the operation panel of hardness or HK each file ruler HV benchmark test time by choice, the lighting source can do promise regulation. Operation can be measured D1 eyepiece, D2 value after the direct input, hardness value in LCD display screen is directly on display.
Usage Range:
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Technical Specifications:
|
Model
|
THV-5
|
|
Min measuring unit
|
0.5µm
|
|
Test force
|
0.3Kgf(2.94N)、0.5Kgf(4.9N)、1.0Kgf(9.8N)、2.0Kgf(19.6N)、3.0Kgf(29.4N)、5Kgf(49.0N)
|
|
Max Height of Specimen
|
160mm
|
|
Distance of Indenter to outer wall
|
135mm
|
|
Net weight
|
About 40Kg
|
|
Power supply
|
AC220V+5%，50-60Hz
|
|
Overall Dimension
|
520*190*650mm
|
|
Hardness measuring range
|
8~2900HV
|
|
method of testing force applied
|
Automatic loading, unloading testing force
|
|
Test microscope magnification
|
200X(Measuring)，100X（observation）
|
|
Duration time
|
0~60s
|
Standard Accessories:
|
Item
|
Quantity
|
Item
|
Quantity
|
|
Weight
|
3
|
Vickers hardness block
|
2
|
|
“V” shaped Testing Table
|
1
|
Fuse(2A)
|
2
|
|
Circular testing table
|
1
|
Power cable
|
1
|
|
Large Testing Table
|
1
|
Product Certificate
|
1
|
|
Objective 10X
|
1
|
Manual
|
1
|
