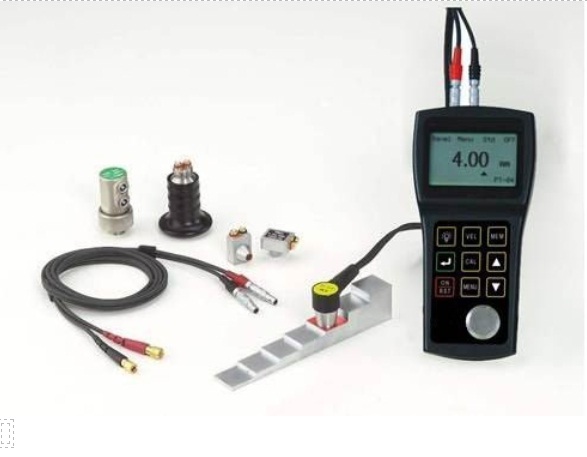

Ultrasonic Through Coating Thickness Gauge
Ultrasonic Through Coating Thickness Gauge

Ultrasonic Through Coating Thickness Gauge

Product ID : UTG-210
Product Tags :
Product Description
Technical Parameter
(1)   Display :   128X64 Pixel LCD with backlight
(2)   Measuring range: 0.8 mm-- 300.0 mm in steel depending on the probe
Special request can reach measuring range up to 500mm
(3)   Standard mode: two function modes of Standard mode and through coating mode
Through coating mode : 2.5 mm – 18.0 mm  (Probe PT-08 and PT-12 )
(4)   Tolerance: +/-0.05 mm in steel
(5)   Display resolution: 0.01 mm( Less than 100.0 mm )
0.1mm( over 100 mm )
(6) Built-in standard block   4.00 mm
(7) Memory: 500 datas in 5 groups, memory does not lose after powering off
(8) Velocity range: 1000-9999 m/s
(9) Power: 2 pcs 1.2 V AAA batteries
(10) Outside dimension: 149X73X32 mm
(11) Net Weight:  160 g

Features
- Automatic self-calibration
- Couplant indicator
- Automatic power off in 5 minutes and manual power off function
- High-low limit alarm
- LCD brightness adjustable
- Through coating capability
- Low battery indicator
- Two points calibration
- Metric/imperial optional
- Dataview for PC communication

STANDARD DELIVERY
TG4100 main unit with through coating mode
Hard carrying case
Couplant bottle
Standard 8 mm, 5 MHzprobe PT-08 with cable (through coating mode)
Dataview CD and communication cable

OPTIONAL ACCESSORIES
4 stepssteel test block
7 stepsmetrics steel test block
5 MHz, 4 mm contact probe
10 MHz, 4 mm, contact probe
5 MHz high temp. probe
Probe cables
Water proof housing

PROBE OPTIONAL
Probe model         Frequency  Contact area  Testing Range (steel)   Contact Temp.
Cast iron probe ZT-12   2MHz     16.2mm         4.0-300.0mm     --10--60
Standard probe PT-12   5MHz     12mm          1.0-200.0mm     --10--60
Standard probe PT-08   5MHz     10mm          0.8-100.0mm     --10--60
Small probe PT-06     7.5MHz    7.6mm          0.8-30.0mm      --10--60
Small probe PT-04     10MHz     5mm           0.8-20.0mm      --10--60
High temp probe GT-12  5MHz      14mm          4.0-80.0mm      up to 300
