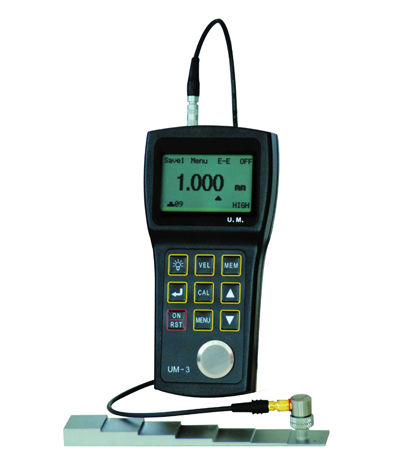

High Accuracy Ultrasonic Thickness Gauge
High Accuracy Ultrasonic Thickness Gauge

High Accuracy Ultrasonic Thickness Gauge

Product ID : UTG-300
Product Tags :
Product Description
FEATURES
    * High Accuracy And Resolution Up To 0.001mm or 0.0001 inch
    * Measuring Ultra Thin Sample As Low As 0.15mm or 0.006 inch
    * Display Units: Imperlal And Metric
    * Automatic Self Calibration
    * Couplant Indicator
    * Automatic Power Off Device
    * High-Low Limit Alarm
    * LCD Brightness Adjust
    * Low Battery Indictor
TECHNICAL SPECIFICATIONS
Measuring Range (for steel)
Interface-Echo Mode:
(I-E or Standard Mode)
1.50mm– 20.0mm
(0.059 in – 0.787 in)
Echo-Echo Mode:
(E-E or High Precision Mode)
0.15mm– 10.0mm
(0.006in – 0.394in)
Measuring Accuracy
±0.005mm or 0.0002 inch (if thickness < 3mm)
±0.05mm or 0.002 inch (if thickness < 20mm)
Display Resolution
mm : 0.1 / 0.01 / 0.001
inch : 0.01 / 0.001 / 0.0001
Sound Velocity Range
1000 to 9999 m/sec (0.0394 – 0.3936 inch/ms)
Measuring Refresh Frequency
4Hz in normal mode, up to 25Hz
Memory Capacity
500 test values
Multiple Calibrations
One point or Two Point
Display LCD
42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch)
Power Source
2 pcs. 1.5v AA size batteries
Continuous working period
About 200 hours (with backlight off)
Power off
Auto power off if idle for 4 minutes
Operating Temperature
-10 °C to +50 °C
Unit Size
2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm).
Weight
200g
STANDARD DELIVERY
1.Main unit with Calibration block (4.00 mm)
2.Precision Probe (D11R) with Replaceable Delay Tip
4.Operation Manual
5.Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
6.Carrying Case
