Product Description
Features
- Four parameters: Ra, Rq, Rz, Rt
- Four parameters: Ra, Rq, Rz, Rt
- High accuracy inductance pickup;
- Standard conform to ISO and GB;
- Can store 10 sets of measurements results;
- DSP chip is used to control and process data;
- Built-in lithium ion chargeable battery and control circuit have high capacity;
- Integration design,small and light;
- Automatic switch off, memory and various prompt instructions;
- Operate easily.
Standard Delivery:

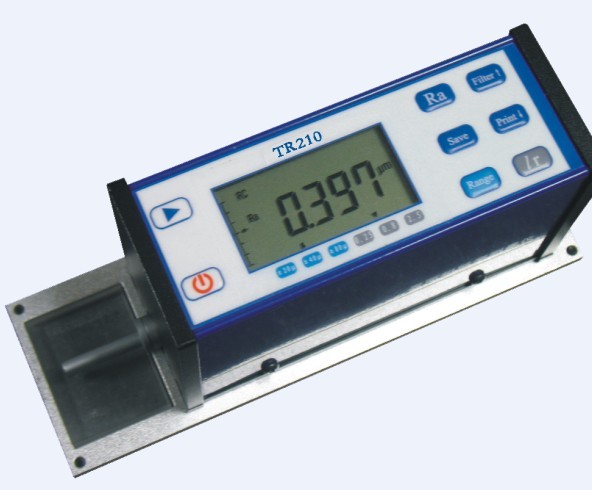

Main unit TR210
Standard sensor
Model for multi-standard groove
Power adapter
Technical Parameters:
|
Item
|
Parameter
|
|
|
Measuring range
|
Z Axis(Vertical）
|
160μm
|
|
X Axis(Horizontal）
|
17.5mm
|
|
|
Resolution
|
Z Axis(Vertical）
|
0.01μm/±20μm
|
|
0.02μm/±40μm
|
||
|
0.04μm/±80μm
|
||
|
Measurement item
|
Parameters
|
Ra, Rq, Rz, Rt
|
|
Standard
|
ISO,GB
|
|
|
Filter
|
RC,PC-RC, Gauss, D-P
|
|
|
Sampling length (lr)
|
0.25, 0.8, 2.5mm
|
|
|
Assessment length( ln）
|
In=lr×n n=5
|
|
|
Pickup
|
principle
|
Differential inductance
|
|
Stylus
|
Natural Diamond, 90B cone angle, 5μm tip radius
|
|
|
Force
|
<4mN
|
|
|
Skid
|
Ruby, Longitudinal radius 40mm
|
|
|
Sliding speed
|
lr=0.25, Vt=0.135mm/s
|
|
|
lr=0.8, Vt=0. 5mm/s
|
||
|
lr=2. 5, Vt=1mm/s
|
||
|
Return, Vt=1mm/s
|
||
|
Accuracy
|
≤ ±10%
|
|
|
Repeatability
|
≤6%
|
|
|
Power supply
|
Built-in Lithium ion battery, AC adapter 8.4V,800mA
|
|
|
Dimensions
|
119×47×65mm
|
|
|
Weight
|
approximately 380g
|
|
Standard Delivery
TR 210 Unit
Standard sensor
Model for multi-standard groove
Power adapter
Optional Accessories
Measurement platform
Sensor holes
Surface sensor
Sensor groove
Extension rod
Lateral transfer bar
PC
