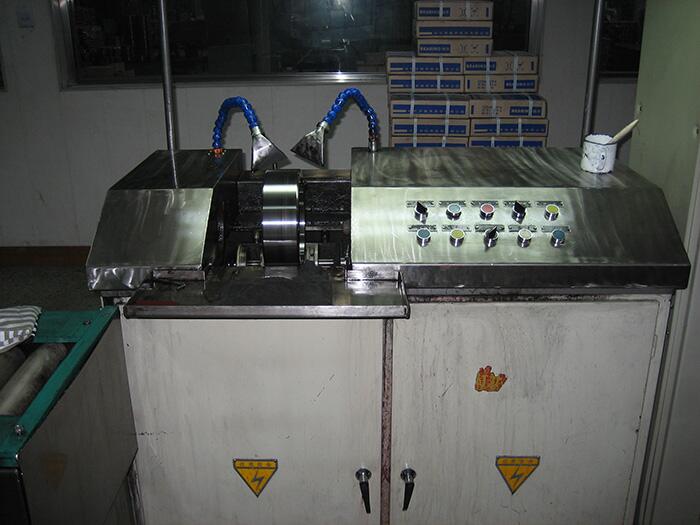

MPI for Bearing Ring
MPI for Bearing Ring

MPI for Bearing Ring

Product Tags :
Product Description

Main technical parameters:

1. Circumferential magnetizing current: AC: 0-6000A, effective value, continuously adjustable;

2. Longitudinal magnetization magnetic potential: AC: 0-18000AT, effective value, continuously adjustable;

3. Magnetization mode: circumferential, longitudinal, composite magnetization;

4. Magnetization sensitivity: 15 / 50A1 test piece shows clear;

5. Temporary load rate: ≥ 30%;

6. Operating mode: manual and automatic operation;

7. Demagnetization effect: ≤0.2mT;

8. Air source pressure: 0.4 0.6Mpa;

9. Power supply: three-phase three-wire 380V ± 10% 50HZ instantaneous maximum 200A;

10. Dimensions: 1200 (L) × 800 (W) × 1200 (H) mm;

11. Weight: about 1200Kg.
